240W 12V MPPT All-Black Solar Panel Kit | 2x120W

From £269.00 Inc. VAT

  • 30% Faster Charging – Get more power in less time with MPPT technology.
  • Durable & Powerful  – Maximum solar production with the latest N-Type TOPCon technology, perfect for UK weather.
  • Complete Kit – Everything you need, ready to plug and play with just basic tools.
  • Compact and Easy-to-Install – Simple setup with step-by-step instructions.
  • Sleek Design – Our solar panels offer a modern take, built to blend seamlessly.
Icon
What’s included?

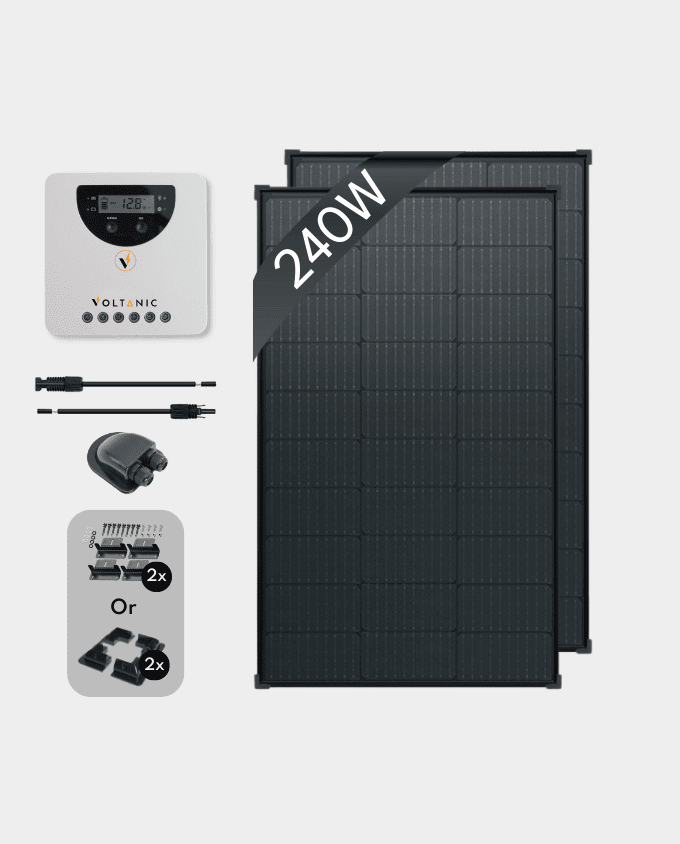

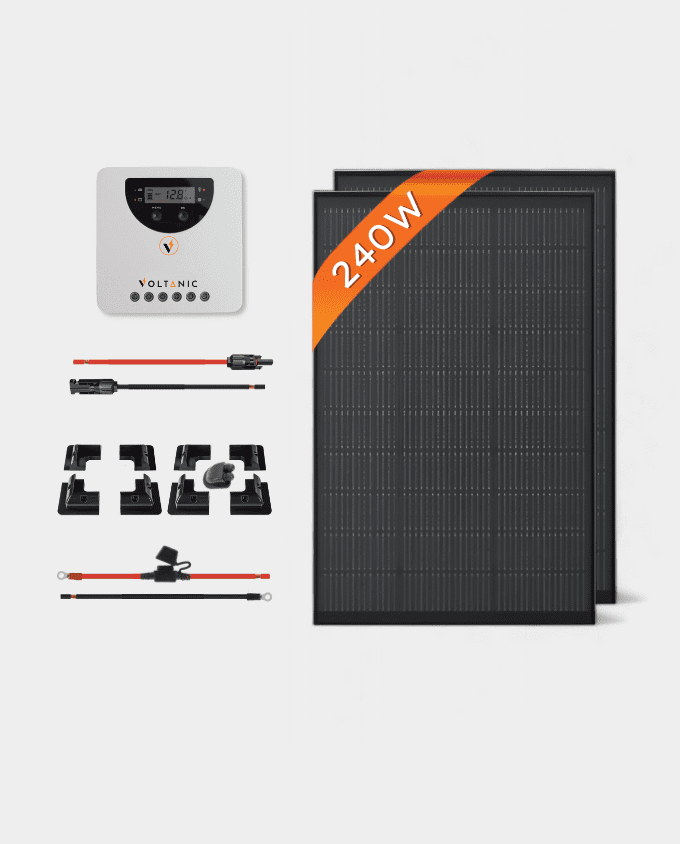

2x 120W Solar Panel • 20A MPPT Controller • 6m Solar Cable • 2m Battery to Controller Cable • 8x Mounts • Cable Gland • Installation Guide • Battery (optional)
Size Icon

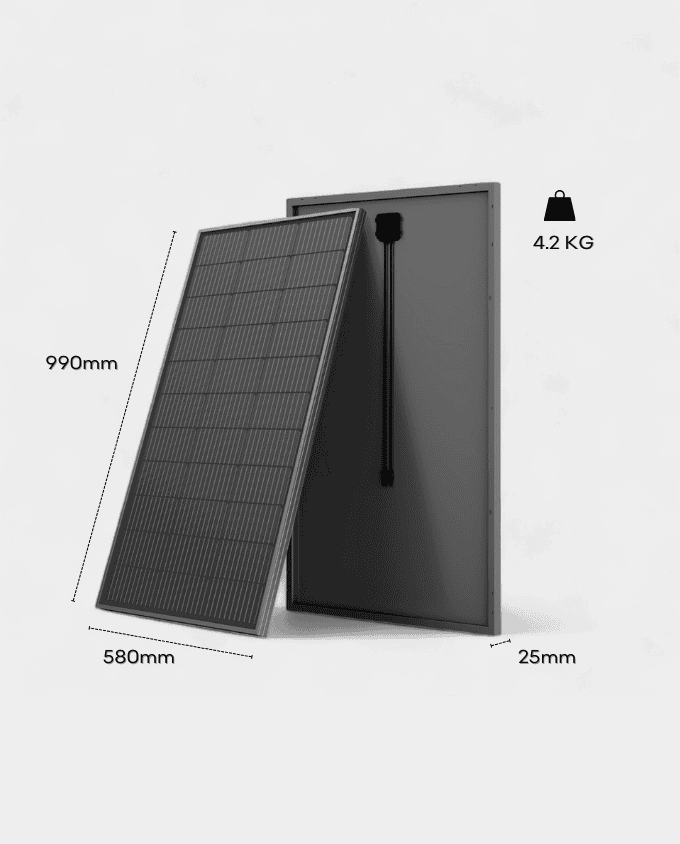

990L x 580W x 25H mm

*Please choose all options below before proceeding.

Save on Extras

1200W Pure Sine Wave Inverter | 12V DC/AC
1200W Pure Sine Wave Inverter | 12V DC/AC
Original price was: £155.00.Current price is: £139.50.
2x No-Drill ABS Side Supports | Black
2x No-Drill ABS Side Supports | Black
Original price was: £12.00.Current price is: £10.80.

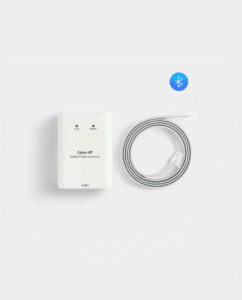

Bluetooth Adapter for Voltanic MPPT Controllers
Bluetooth Adapter for Voltanic MPPT Controllers
Original price was: £25.00.Current price is: £22.50.
Solar Icon
Voltanic Solar is highly rated by customers on Trustpilot for exceptional quality and support. Read more.

BUY WITH CONFIDENCE

Whatsapp Support

We take a unique approach to customer service—chat with us anytime!

Easy Returns

Enjoy stress-free returns with no questions asked.

12 Year Warranty

Rest easy with our outstanding and reliable warranty coverage.

Everything you need

SIMPLY POWERED BY THE SUN

A complete solar solution, perfectly assembled and designed to get the most out of the system you choose.

It includes correctly sized wiring, mounting options, the latest solar panel technology, and a premium MPPT controller to handle it all.

And you don’t need to guess; we include a full installation guide with easy steps, plus WhatsApp support if you have any extra questions.

SMART DESIGN. EASY FIT.

LOW PROFILE

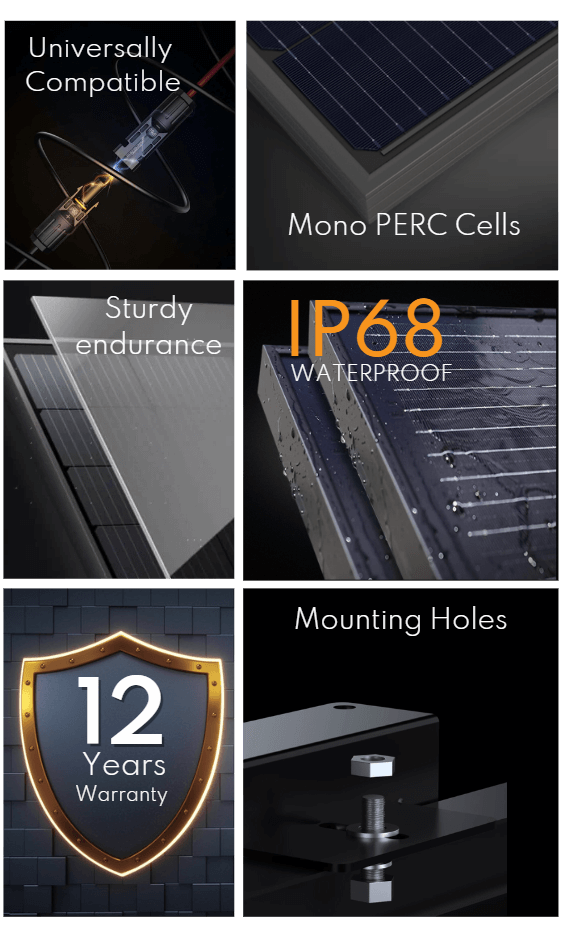

Voltanics panels offer a sleek design; frame, backsheet, and edge busbars all matched for a clean, uniform look that blends in.

EASY TO INSTALL

Pre-drilled mounting holes to fit a variety of mounting systems, plus 90cm cable with MC4 for easy wiring.

LATEST N-TYPE TOPCON TECHNOLOGY

Voltanic rigid panels are designed with the latest TOPCon N-Type technology to give you more power from the same sunlight.

MORE POWER IN LESS SPACE

Thanks to advanced N-Type TOPCon cells, Voltanic panels produce the same power in less space, making them compact and over 10% shorter, the perfect size for fitting solar panels into your campervan or motorhome.

24/7 MONITORING

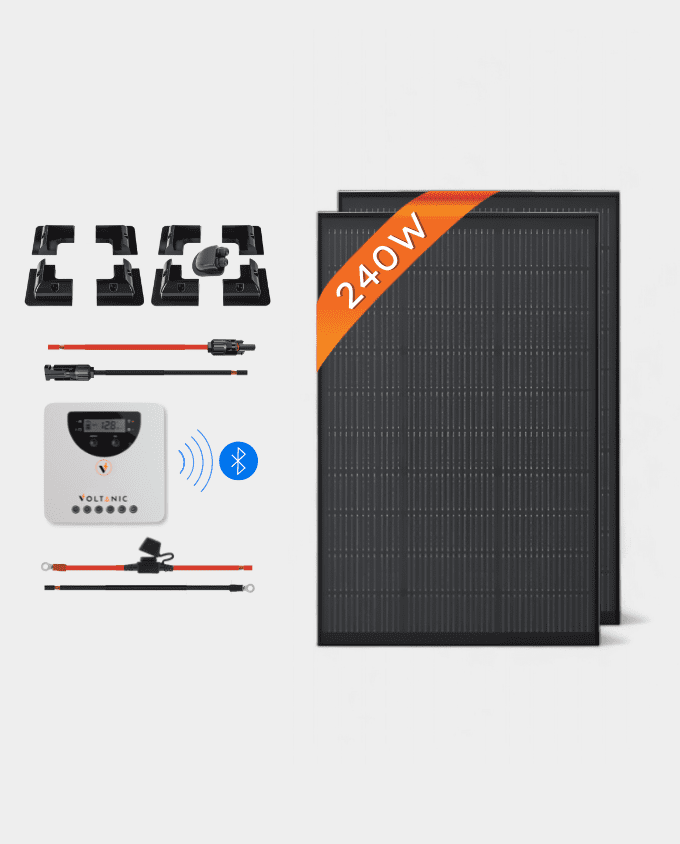

Add Bluetooth to your controller and monitor your entire system from your phone. Use our mobile app to adjust settings, track solar performance, and keep an eye on your battery health — all in one place.

*Bluetooth is optional

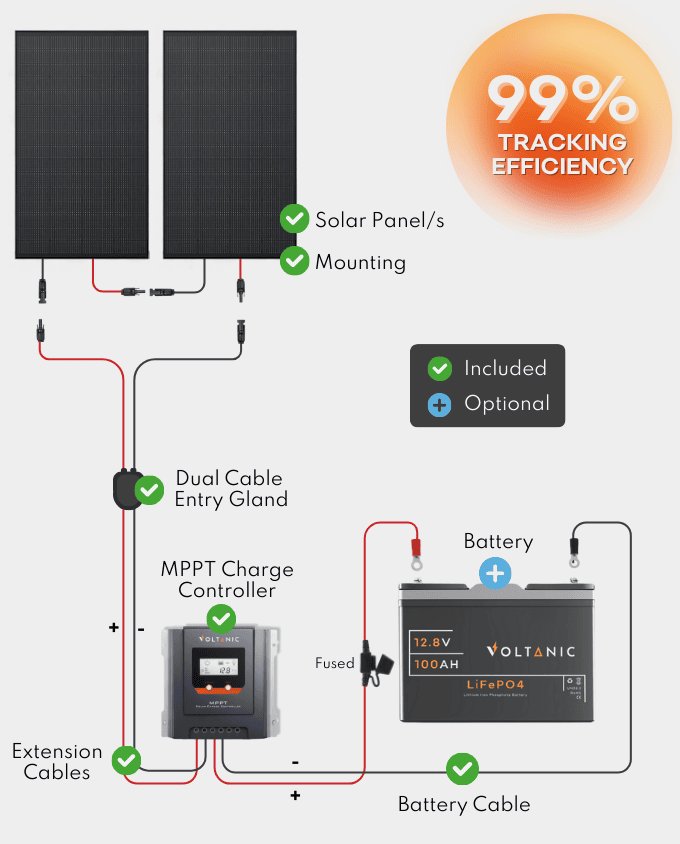

ALL-IN-ONE SOLAR SOLUTION

From the solar panel to your battery, you don’t need to worry about sourcing anything extra. We provide all the cabling, mounting, and essential equipment for a very easy setup.

Picture for reference only. The actual number of panels (one or two) and the MPPT model may vary depending on the system.

Series Connection for Maximum Efficiency

This kit is designed for series connection. This wiring setup is the most common and most effective for kits with MPPT controllers, letting you take full advantage of the increased voltage for better performance and safe battery charging.

THE VOLTANIC DIFFERENCE

Our kits come standard with a premium MPPT  controller, unlike most kits that include a PWM version (cheaper and less efficient).

This upgrade lets you harvest up to 30% more power, as MPPT controllers work smarter to capture up to 99% of available energy while keeping your battery safe at all times.

Compatible with all batteries, Lithium, Lead-Acid, Flooded, AGM, Liquid.

WORRY-FREE SET-UP

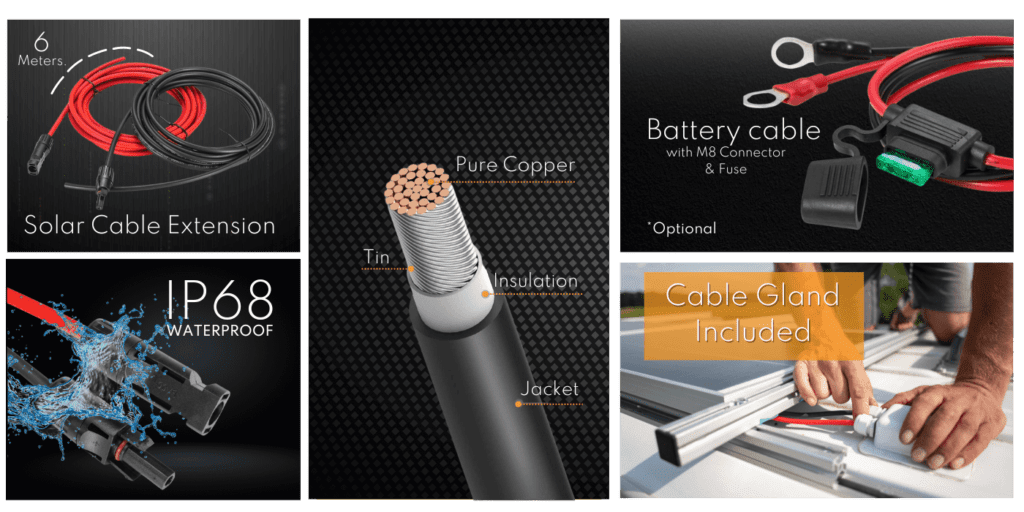

Don’t worry about wiring or crimping—every cable comes pre-crimped and ready to plug in, with the correct gauge and fuse included. We use insulated, TUV-approved pure tin copper cables to ensure minimal voltage drop.

A watertight cable gland is also included to safely route your cables through any roof or wall, along with a step-by-step guide to walk you through the setup.

POWER YOUR APPLIANCES FOR 2 DAYS* IN SUMMER.

*Based on 5 peak sun hours in summer. The actual runtime may vary.

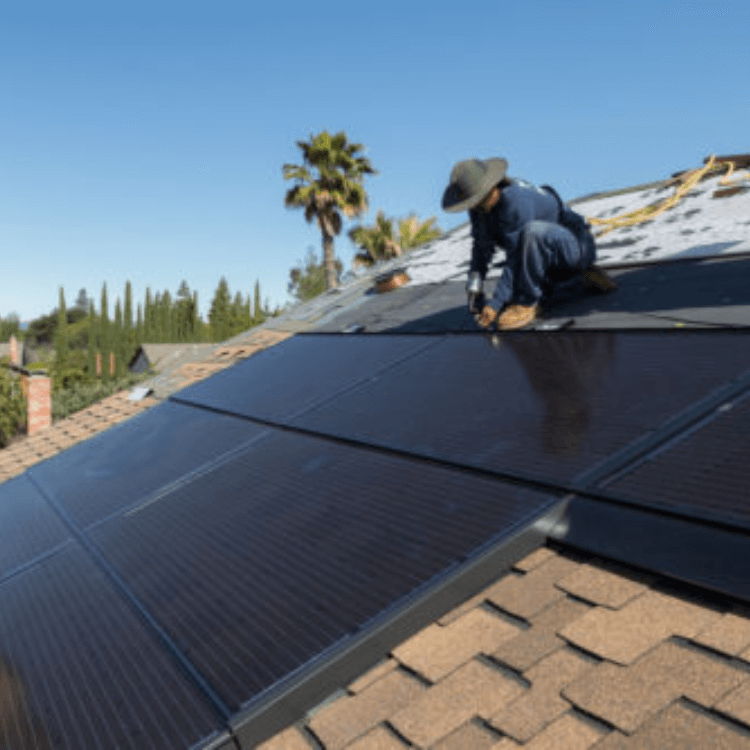

YOUR DIY INSTALLATIONS

6 (45)
5 (48)
4 (54)
3
2
1
shedintas (1)

SPECS

120W Solar Panel
Max Peak Power (Pmax): 120W
Voltage at Max Power (Vmp): 19.07V
Current at Max Power (Imp): 6.29A
Open Circuit Voltage (Voc): 21.96V
Short Circuit Current (Isc): 6.62A
Size: 990 × 580 × 25 mm
Weight: 6.24 kg
Connector: MC4
Cable: 90 cm, 2 mm²
Technology: N-Type TopCon
20A MPPT Controller
System Voltage: 12V/24V
Max Charging Current: 20A
Max Wattage: 260W/520W
Battery Compatibility: Lead-Acid, Gel, AGM, Liquid, Lithium
Max Volt on PV Terminal: 95V
Dimensions: 137 × 137 × 67 mm
Weight: 830 grams
Bluetooth: Optional
Cables
Solar Extension: 6 metres, 6 mm² / 12AWG
- Connector: MC4 (crimped)
- Material: Tinned Copper
Battery to Controller Cable: 2 metres, 6 mm² / 10AWG
- Connector: M8 ring (crimped)
- Fuse: 20A inline fuse included
Mounting & Gland
“Z” Brackets: 8 pcs, Aluminium, Height: 32 mm
No-Drill Mounts: 8 corners, ABS, Height: 6 cm
Cable Gland: ABS, Dual Entry, Black
Installation Guide
Step-by-step printed guide included in the box.
Covers wiring, connections, mounting and tips.
WhatsApp support available if you get stuck.
Battery (Optional)
100Ah 12V
Energy: 1280 kWh | Voltage: 12.8V | Charge/Discharge: 100A
Size: 307 × 169 × 208 mm | Weight: 10 kg
300Ah 12V
Energy: 3840 kWh | Voltage: 12.8V | Charge/Discharge: 250A
Size: 520 × 269 × 220 mm | Weight: 28 kg

You may also like…

  • 200W 12V MPPT All-Black Solar Panel Kit

    200W 12V MPPT All-Black Solar Panel Kit

    From £199.00 Inc. VAT
    ADD TO BASKET This product has multiple variants. The options may be chosen on the product page
  • £15 OFF 320W 12V MPPT All-Black Solar Panel Kit | 2x160W320w kit wiring

    320W 12V MPPT All-Black Solar Panel Kit | 2x160W

    From  Original price was: £329.00.Current price is: £314.00. Inc. VAT
    ADD TO BASKET This product has multiple variants. The options may be chosen on the product page
  • 120W N-Type TOPCon Solar Panel 12V All-Black

    120W N-Type TOPCon Solar Panel 12V All-Black

    £75.00 Inc. VAT
    ADD TO BASKET
  • 400W 12V MPPT All-Black Solar Panel Kit | 2x200W

    400W 12V MPPT All-Black Solar Panel Kit | 2x200W

    From £349.00 Inc. VAT
    ADD TO BASKET This product has multiple variants. The options may be chosen on the product page
Basket Close
Updating…
  • No products in the basket.

Continue shopping

Most solar kits have a dirty little secret they don't tell you about:
They waste valuable power.
Here's the deal

12V solar panels actually output around 20V

12V leisure batteries charge at just over 12V*

Standard PWM controllers simply drop those extra 8V — throwing away precious power

In cloudy Britain where every watt counts, this is a problem.
The Voltanic Difference

Every Voltanic Kit takes those wasted volts and converts them into extra amps using Advanced MPPT (Maximum Power Point Tracking) Technology.

Harvest 100% of your Solar Energy - No wasted watts

Charge your Batteries 30% Faster

More Power, Fewer Panels - Perfect for tight spaces

Better Value Investment - Get what you pay for

Maximum Power. Zero Waste.
24V 20V 16V 12V 8V 20V Input 12V Output 8V Wasted as Heat
24V 20V 16V 12V 8V 20V Input 12V Output Converting to Extra Amps
Real World Comparison:
100W Panel Performance
Watts = Volts x Amps
Controller Standard PWM Voltanic MPPT
Panel Voltage 20V 20V
Controller Charging Voltage 12V
(PWM reduces voltage)		 12V
(MPPT reduces voltage)
Amperage 5.8A
(amps stays same)		 8.2A
(MPPT increases amps)
Power Output 12V × 5.8A = 70W 12V × 8.2A = 98W
Power Wastage ~30W
(lost as heat)		 ~2W
(conversion loss)
