200W 12V MPPT All-Black Solar Panel Kit

From £199.00 Inc. VAT

  • 30% Faster Charging – Get more power in less time with MPPT technology.
  • Durable & Powerful  – Maximum solar production with the latest N-Type TOPCON Technology, perfect for UK weather.
  • Complete Kit – Everything you need, ready to plug and play with just basic tools.
  • Compact and Easy-to-Install – Simple setup with step-by-step instructions.
  • Sleek Design – Our solar panels offer a modern take, built to blend seamlessly.
Icon
What’s included?

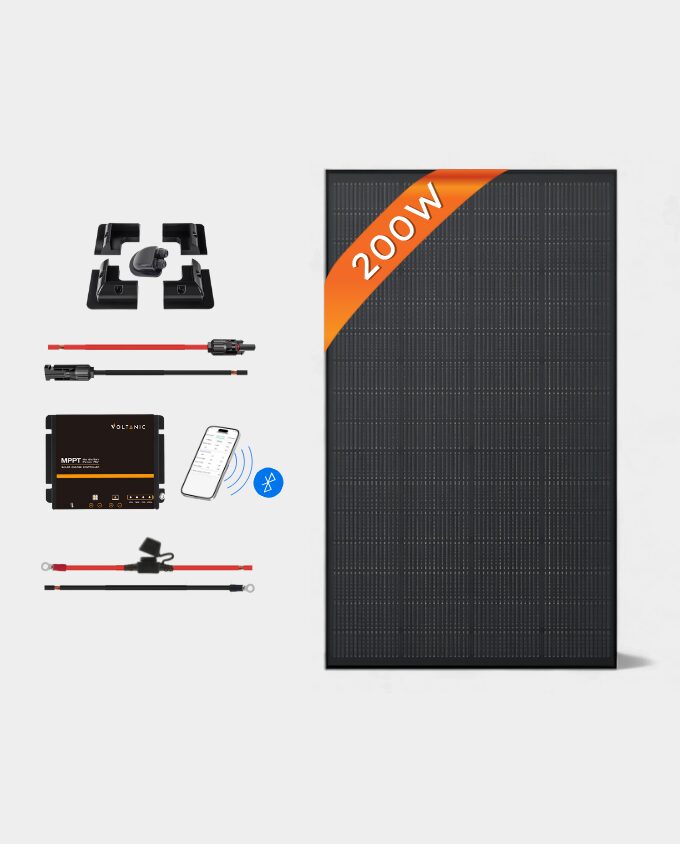

200W Solar Panel • 15A 12V MPPT Controller • 6m Solar Cable • 2m Battery to Controller Cable • 4x Mounts • Cable Gland • Installation Guide • Battery (optional)
Size Icon
1200L x 765W x 30H mm

*Please choose all options below before proceeding.

Save on Extras

2x No-Drill ABS Side Supports | Black
2x No-Drill ABS Side Supports | Black
Original price was: £12.00.Current price is: £10.80.
sikaflex 522
Adhesive Sealant Sikaflex 522 | White 300ml
Original price was: £16.00.Current price is: £14.40.
1200W Pure Sine Wave Inverter | 12V DC/AC
1200W Pure Sine Wave Inverter | 12V DC/AC
Original price was: £155.00.Current price is: £139.50.
Extension Battery Temperature Sensor 1 Metre
Extension Battery Temperature Sensor 1 Metre
Original price was: £7.00.Current price is: £6.30.
Solar Icon
Voltanic Solar is highly rated by customers on Trustpilot for exceptional quality and support. Read more.

BUY WITH CONFIDENCE

Whatsapp Support

We take a unique approach to customer service—chat with us anytime!

Easy Returns

Enjoy stress-free returns with no questions asked.

12 Year Warranty

Rest easy with our outstanding and reliable warranty coverage.

Everything you need

SIMPLY POWERED BY THE SUN

A complete solar solution, perfectly assembled and designed to get the most out of the system you choose.

It includes correctly sized wiring, mounting options, the latest solar panel technology, and a premium MPPT controller to handle it all.

And you don’t need to guess; we include a full installation guide with easy steps, plus WhatsApp support if you have any extra questions.

SMART DESIGN. EASY FIT.

LOW PROFILE

Voltanics panels offer a sleek design; frame, backsheet, and edge busbars all matched for a clean, uniform look that blends in.

EASY TO INSTALL

Pre-drilled mounting holes to fit a variety of mounting systems, plus corner 90cm cable with MC4 for easy wiring.

LATEST N-TYPE TOPCON TECHNOLOGY

Voltanic rigid panels are designed with the latest TOPCon N-Type technology to give you more power from the same sunlight.

MORE POWER IN LESS SPACE

Thanks to advanced N-Type TOPCon cells, Voltanic panels produce the same power in less space, making them compact and over 10% shorter, the perfect size for fitting solar panels into your campervan or motorhome.

ALL-IN-ONE SOLAR SOLUTION

From the solar panel to your battery, you don’t need to worry about sourcing anything extra. We provide all the cabling, mounting, and essential equipment for a very easy setup.

Picture for reference only. The actual number of panels (one or two) and the MPPT model may vary depending on the system.

THE VOLTANIC DIFFERENCE

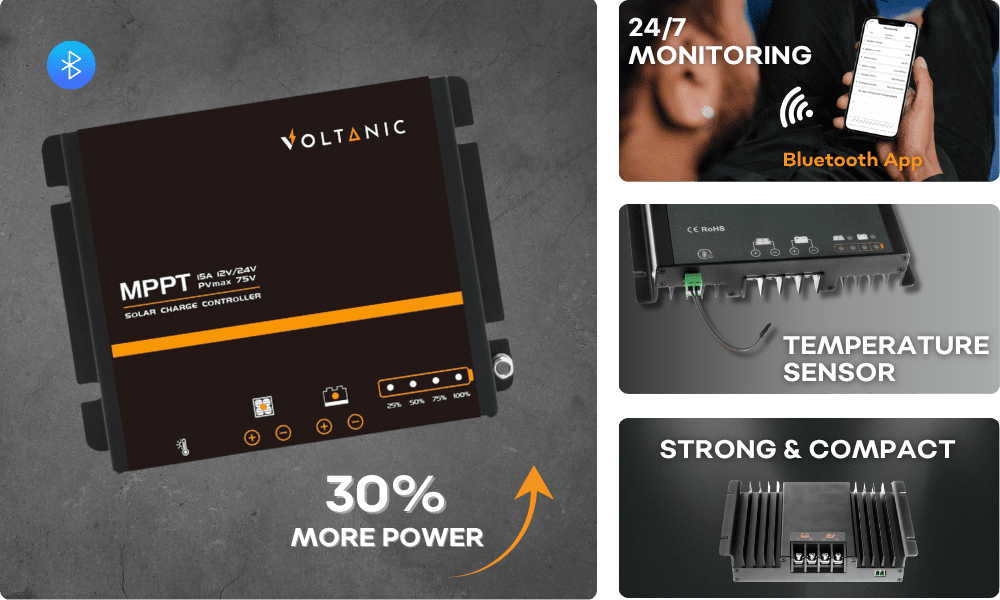

Our kits come standard with a premium MPPT  controller, unlike most kits that include a PWM version (cheaper and less efficient).

This upgrade lets you harvest up to 30% more power, as MPPT controllers work smarter to capture up to 99% of available energy while keeping your battery safe at all times.

Compatible with all batteries, Lithium, Lead-Acid, Flooded, AGM, Liquid.

WORRY-FREE SET-UP

Don’t worry about wiring or crimping—every cable comes pre-crimped and ready to plug in, with the correct gauge and fuse included. We use insulated, TUV-approved pure tin copper cables to ensure minimal voltage drop.

A watertight cable gland is also included to safely route your cables through any roof or wall, along with a step-by-step guide to walk you through the setup.

POWER YOUR APPLIANCES FOR 2 DAYS* IN SUMMER.

*Based on 5 peak sun hours in summer. The actual runtime may vary.

YOUR DIY INSTALLATIONS

6 (45)
5 (48)
4 (54)
3
2
1
shedintas (1)

SPECS

200W Solar Panel
Max Peak Power (Pmax): 200W
Voltage at Max Power (Vmp): 19.20V
Current at Max Power (Imp): 10.42A
Open Circuit Voltage (Voc): 22.30V
Short Circuit Current (Isc): 11.14A

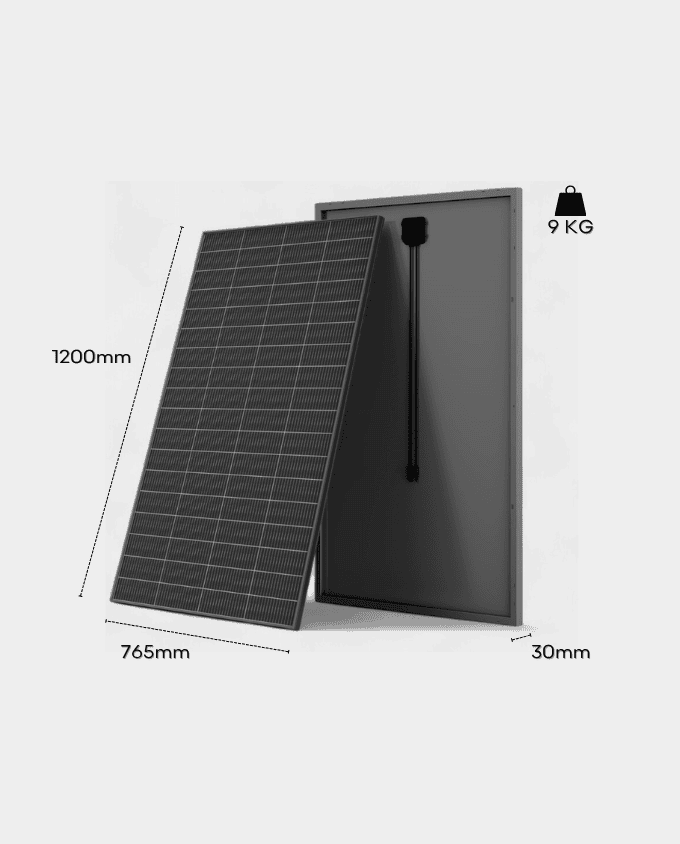

Size: 1200 × 765 × 30 mm
Weight: 9.4 kg
Connector: MC4
Cable: 90 cm, 2 mm²
Technology: N-Type TopCon
15A MPPT Controller
System Voltage: 12V
Max Charging Current: 15A
Max Input Power: 200W
Battery Types: Lead-Acid, Gel, AGM, Lithium
Max PV Input Voltage: 35V
Size: 189 × 96 × 53 mm
Weight: 430 g
USB Port: 5V / 2A
Cables
Solar Extension: 6 metres, 4 mm² / 12AWG
- Connector: MC4 (crimped)
- Material: Tinned Copper
Battery to Controller Cable: 2 metres, 6 mm² / 10AWG
- Connector: M8 ring (crimped)
Mounting & Gland
“Z” Brackets: 4 pcs, Aluminium, Height: 32 mm
No-Drill Mounts: 4 corners, ABS, Height: 6 cm
Cable Gland: ABS, Dual Entry, Black
Installation Guide
Step-by-step printed guide included in the box.
Covers wiring, connections, mounting and tips.
WhatsApp support available if you get stuck.
Battery (Optional)
100Ah 12V
Energy: 1280 kWh | Voltage: 12.8V | Charge/Discharge: 100A
Size: 307 × 169 × 208 mm | Weight: 10 kg
300Ah 12V
Energy: 3840 kWh | Voltage: 12.8V | Charge/Discharge: 250A
Size: 520 × 269 × 220 mm | Weight: 28 kg

You may also like…

  • 400W 12V MPPT All-Black Solar Panel Kit | 2x200W

    400W 12V MPPT All-Black Solar Panel Kit | 2x200W

    From £349.00 Inc. VAT
    ADD TO BASKET This product has multiple variants. The options may be chosen on the product page
  • £15 OFF 320W 12V MPPT All-Black Solar Panel Kit | 2x160W320w kit wiring

    320W 12V MPPT All-Black Solar Panel Kit | 2x160W

    From  Original price was: £329.00.Current price is: £314.00. Inc. VAT
    ADD TO BASKET This product has multiple variants. The options may be chosen on the product page
  • 240W 12V MPPT All-Black Solar Panel Kit | 2x120W

    240W 12V MPPT All-Black Solar Panel Kit | 2x120W

    From £269.00 Inc. VAT
    ADD TO BASKET This product has multiple variants. The options may be chosen on the product page
Basket Close
Updating…
  • No products in the basket.

Continue shopping

Most solar kits have a dirty little secret they don't tell you about:
They waste valuable power.
Here's the deal

12V solar panels actually output around 20V

12V leisure batteries charge at just over 12V*

Standard PWM controllers simply drop those extra 8V — throwing away precious power

In cloudy Britain where every watt counts, this is a problem.
The Voltanic Difference

Every Voltanic Kit takes those wasted volts and converts them into extra amps using Advanced MPPT (Maximum Power Point Tracking) Technology.

Harvest 100% of your Solar Energy - No wasted watts

Charge your Batteries 30% Faster

More Power, Fewer Panels - Perfect for tight spaces

Better Value Investment - Get what you pay for

Maximum Power. Zero Waste.
24V 20V 16V 12V 8V 20V Input 12V Output 8V Wasted as Heat
24V 20V 16V 12V 8V 20V Input 12V Output Converting to Extra Amps
Real World Comparison:
100W Panel Performance
Watts = Volts x Amps
Controller Standard PWM Voltanic MPPT
Panel Voltage 20V 20V
Controller Charging Voltage 12V
(PWM reduces voltage)		 12V
(MPPT reduces voltage)
Amperage 5.8A
(amps stays same)		 8.2A
(MPPT increases amps)
Power Output 12V × 5.8A = 70W 12V × 8.2A = 98W
Power Wastage ~30W
(lost as heat)		 ~2W
(conversion loss)
