Compact-Power 120W 12V Solar Panel Kit

From £145.00

This compact and easy-to-install solar power kit is perfect for keeping your batteries topped up, powering all your small devices and lights, or when space is limited.

  • Will it fit? 1070*570*30mm

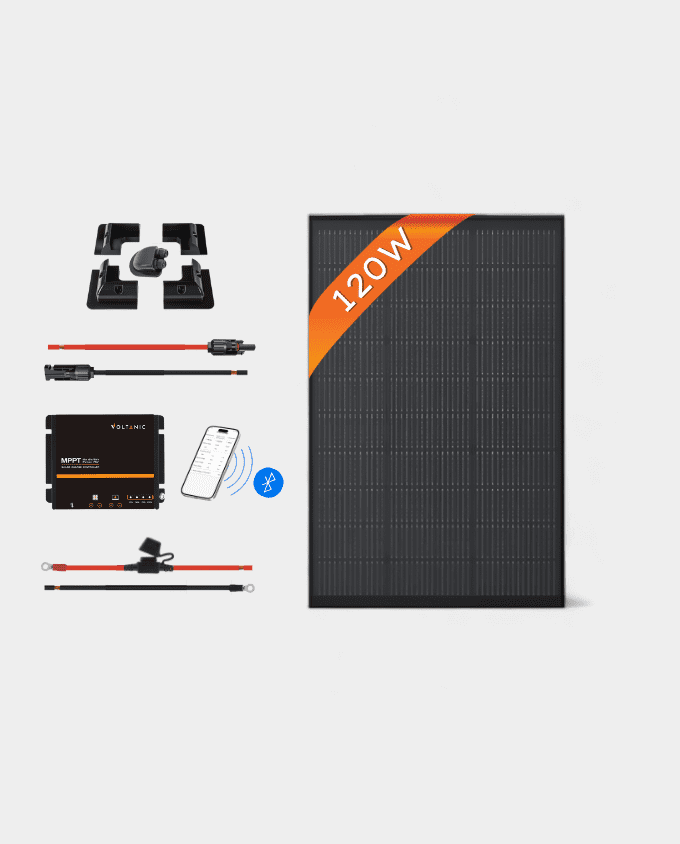

  • What’s included? 120W Solar Panel • Charge Controller • 6 Metres Extension Cable • 4x Mounts • Cable Entry Gland • Installation Guide

🎁 Free Battery to Controller Connection Cable | 2 Metre, Fused. Automatically added to your basket.

  • Add Extras *

    1200W Pure Sine Wave Inverter | 12V DC/AC Original price was: £155.00.Current price is: £124.00.

Features: mounting holes, MC4 connectors and IP68 Waterproof

CONVENIENT AND ELEGANT

Ready for a hassle-free installation with pre-drilled holes and a 90cm cable with MC4 connectors. Designed with anti-reflective coating and IP68 waterproofing for added durability and comfort.

PERC Technology explained

MAXIMUM ENERGY YIELD

Latest-generation PERC cells, together with excellent raw materials, allow an increase on energy conversion efficiency up to 10% more than conventional solar panels.

PERC Technology explained

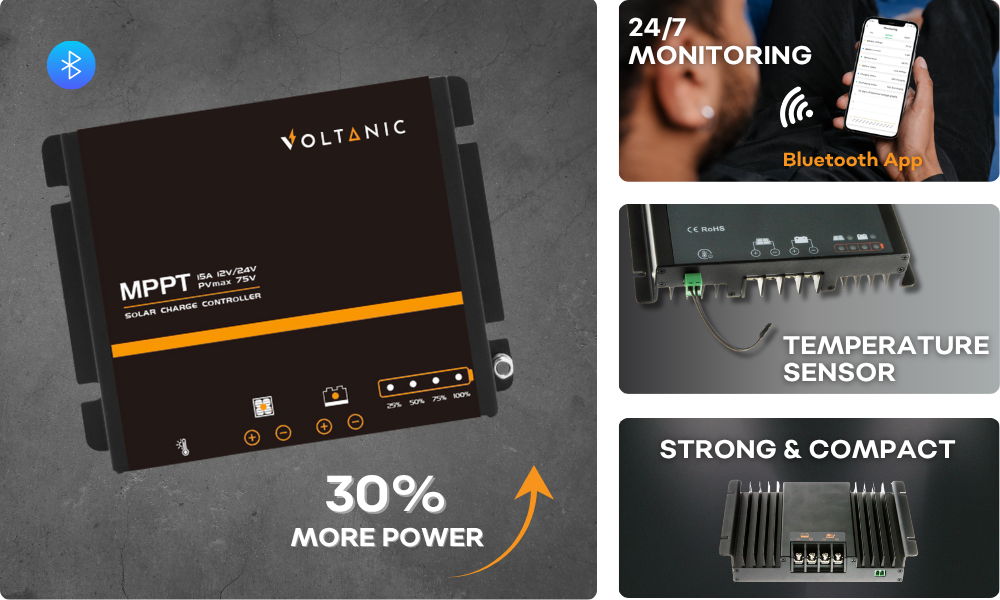

15A Voltanic MPPT Features

SQUEEZE EVERY DROP OF POWER

Our high-end, best-selling MPPT 15A 12V not only maximizes your solar power harvesting, capturing up to 99% of available energy, but also ensures your batteries’ longevity and safety with a 4-stage charging cycle.

*While we do offer a budget PWM controller, we highly recommend opting for our MPPT when possible.

mounting options Z brackets or ABS Mounts

CHOOSE YOUR OWN BRACKETS

Choose what’s best for you. No extra cost.

  • “Z” Aluminium Brackets: Versatile and suitable for any surface.
  • No-Drill ABS Brackets:  Ideal for those who prefer to avoid drilling holes, mostly used on flat roofs like motorhomes and campers.
mounting options Z brackets or ABS Mounts

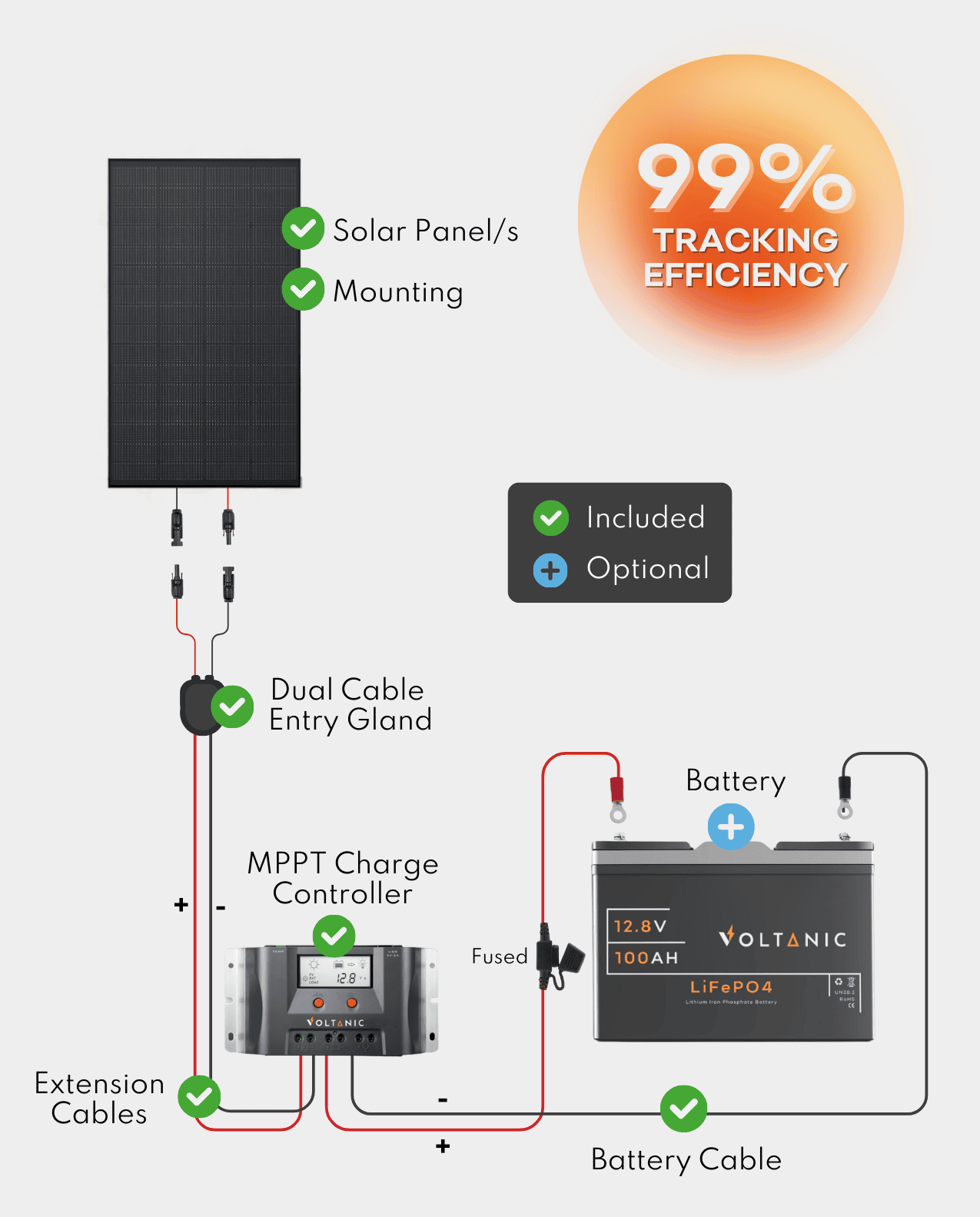

Cables included in the kit

WORRY-FREE SET-UP

Don’t worry about wiring or crimping—all cables come pre-crimped and ready to plug in. Made from insulated TUV-approved pure tin copper for minimal voltage drop.

Safely feed your cables through any roof or wall with a watertight cable gland.

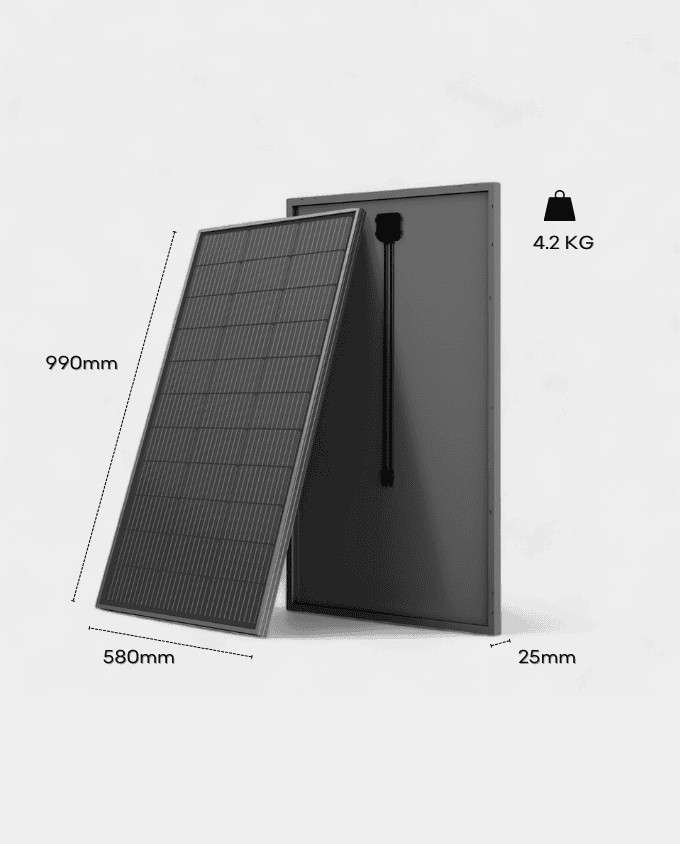

120W Solar Panel
  • Peak Power Watts (Pmax): 120W
  • Maximum Voltage (Vmp): 19.28V
  • Maximum Current (Imp): 6.22A
  • Open Circuit Voltage (Voc): 22.03V
  • Short Circuit Current (Isc): 6.54A
  • Dimensions: 1070 * 580 * 30 mm
  • Weight: 6.37 kg
  • Cables: 90cm, 2.5mm

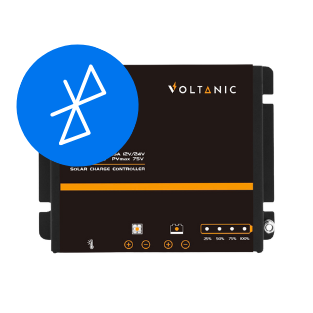

15A 12V MPPT Controller
  • System Voltage: 12V
  • Max Charging Current: 15A
  • Max Wattage: 200 Watt
  • Battery Compatibility: Lead-Acid, Gel, AGM, Liquid, Lithium
  • Max Volt on PV Terminal: 35V
  • Dimensions: 189 x 96 x 53 mm
  • Weight: 430 grams
  • USB Port: 5V/2A

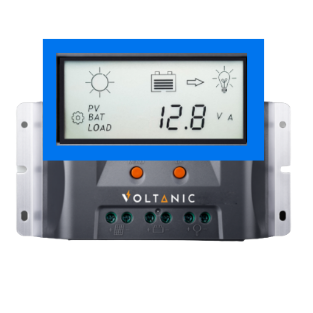

20A 12V PWM Controller
  • System Voltage: 12/24/36/48V (Automatic Recognition)
  • Max Charging Current: 20A
  • Battery Compatibility: Gel, AGM, Flooded & Lithium
  • Max Volt on PV Terminal: 100V
  • Dimensions: 168 x 88 x 36 mm
  • Weight: 220 grams
  • USB Port: 5V/2A
Mounting Options
  • “Z” Brackets:
    Material: Aluminium Alloy
    Height: 32 mm
    Includes: 4x Z-brackets, all screws, nuts and bolts.
  • No-Drill ABS Mounts:
    Material: ABS (Plastic)
    Colour: Black
    Height: 6 cm
    Includes: 4x corner mounts and screws.
Extension Cable
  • Wire Diameter: 4mm²/12AWG
  • Length: 6 metres
  • Material Conductor: Tinned Copper Wire
  • Connector: MC4 (crimped)
Dual Cable Entry Gland
  • Material: ABS (Plastic)
  • Colour: Black

PWM is cost-effective and maintains a constant voltage, suitable for simpler setups. MPPT is more efficient and dynamically adjusts voltage and current to maximize energy harvest, performing better even on cloudy days.

“Z” brackets are the most common way to attach panels to various types of roofs. They ensure a secure attachment of your panel to the surface.

ABS mounts are mostly used on motorhomes, campervans, and caravans. These are ideal because they’re glued in place, so you don’t need to worry about drilling leaking holes into the roof.

Voltanic panels can be installed on homes, tinyhomes, motorhomes, campervans, boats, remote homes, summer houses, workshops, static caravans, stables and any outside building that you can think of. You can mount them on your roof or on the ground.

70-80% Output – Clear sky midday sun but with the panel laid flat.
50-65% Output – Thin cloud, or intermittent small clouds.
10-20% Output – Overcast sky or rainy conditions.

Yes, this kits will work with 12v battery system.

To determine the size of your kit, it is important to first understand the power requirements of your system. Please read our short blog post here which will help you determine what size kit you require. If in doubt, give us a message and we’ll be happy to help.

Solar panels rarely achieve their rated wattage in real-world conditions. Optimal performance requires 25°C temperature, peak sunlight, no obstructions, and perfect panel angle – conditions met simultaneously. Environmental factors typically reduce output. For practical estimates, 75% of rated wattage per peak sun hour is generally reasonable in most climates.
