Deluxe XL 1600W 24V Solar Panel Kit

Original price was: £1,050.00.Current price is: £997.50. Inc. VAT -5%

The ideal solution for any medium size building. This kit delivers ample energy to meet the majority of full-time requirements. In UK summer conditions this system could generate approximately 10.0kWh per day.

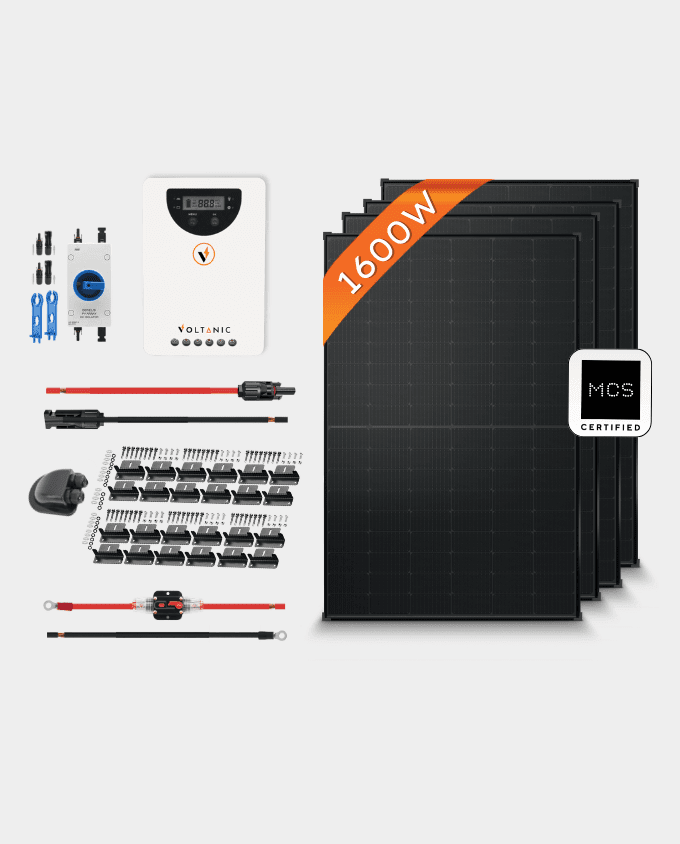

  • What’s included? 4x 400W Solar Panels • 60A Bluetooth MPPT Controller • 6 Metres Solar Cable • 1.5 Metres Battery to Controller Cable • 60A Circuit Breaker • “Z” Brackets Mounting Kit • Cable Entry Gland • Complete DC Isolator

In stock

Solar Icon
Voltanic Solar is highly rated by customers on Trustpilot for exceptional quality and support. Read more.

Interested in something similar or have any questions?

We understand you may have unique requirements for your set-up. Contact us to modify any kit to your needs.

100%
Money Back

Not satisfied? Return it within
14 days for a refund.

maintenance
Installation
Support

Any problems and we are
here to help. Always.

12 Year
Warranty

That’s how much we believe in our products. Terms Here.

Free & Fast
Shipping

All orders sent out Next Day Tracked Delivery.

Money Back Guarantee
12 Year
Warranty
Installation Support
Free & Fast Delivery
400W solar panel benefits

CONVENIENT AND ELEGANT

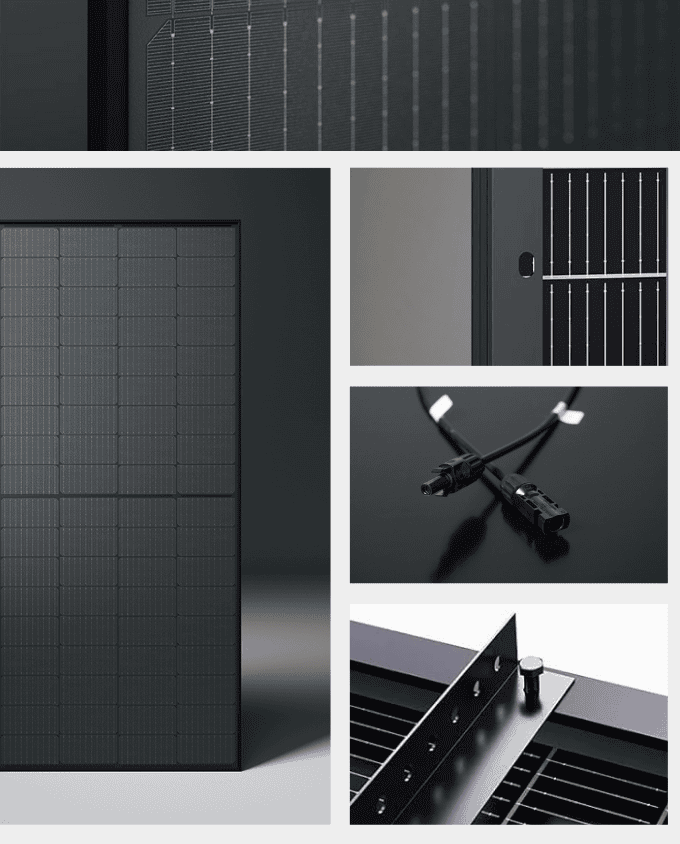

With Voltanic, beauty and efficiency aren’t just a first impression; they’re a lasting commitment. Our panels meets strict industry standards for quality and performance, with benefits including anti-reflective coating, IP68 waterproofing and MC4 connectors.

PERC Technology explained

MAXIMUM ENERGY YIELD

Latest-generation PERC cells, together with excellent raw materials, allow an increase on energy conversion efficiency up to 10% more than conventional solar panels.

PERC Technology explained

SQUEEZE EVERY DROP OF POWER

Keep your batteries safe with our high-end MPPT 60A. They maximize solar power harvesting, capturing up to 99% of available energy, and ensure battery longevity and safety with a 4-stage charging cycle.

KEEP TRACK OF YOUR SYSTEM

Easily monitor your system from the comfort of your phone and adjust settings with our mobile app. Handy for tracking your system’s performance and battery health!

WORRY-FREE SET-UP

Don’t worry about wiring or crimping—all cables come pre-crimped and ready to plug in. Made from insulated TUV-approved pure tin copper for minimal voltage drop.

A DC isolator is included, enabling safe isolation of the entire PV array during installation or maintenance.

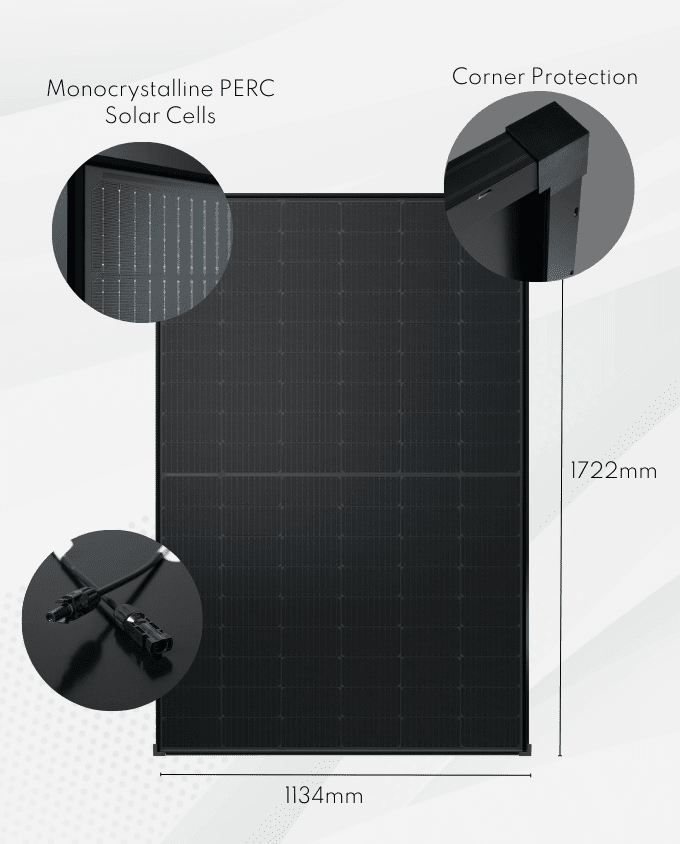

400W Solar Panel
  • Peak Power Watts (Pmax): 400W
  • Maximum Voltage (Vmp): 31.01V
  • Maximum Current (Imp): 12.90A
  • Open Circuit Voltage (Voc): 37.07V
  • Short Circuit Current (Isc): 13.79A

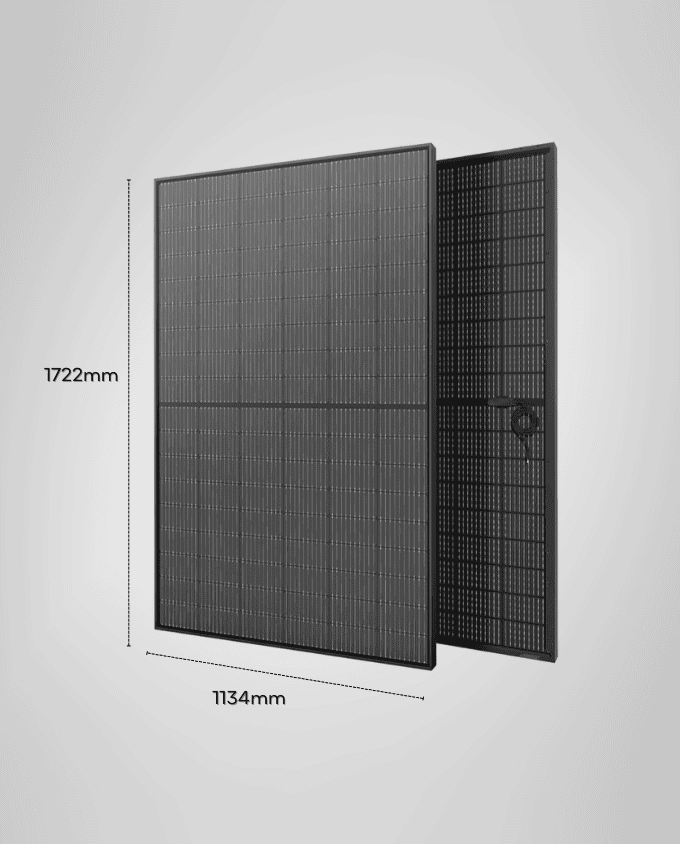

  • Dimensions: 1722 x 1134 x 30 mm
  • Weight: 20.5 kg
  • Cables: 120cm, 4 mm2
60A 12V/24V MPPT Controller
  • System Voltage: 12V/24V/36V/48V
  • Max Charging Current: 60A
  • Max Wattage: 750/1500/2250/3000W
  • Battery Compatibility: Lead-Acid, Gel, AGM, Liquid, Lithium
  • Max Volt on PV Terminal: 138V
  • Dimensions: 262.5*186.5*97.5mm
  • Weight: 3kg
  • Bluetooth: Yes
Mounting Options

*Note: 8 per panel, not total.

“Z” Brackets:
Material: Aluminium Alloy
Height: 32 mm
Includes: 8x Z-brackets, all screws, nuts and bolts.

Extension Cable
  • Wire Diameter: 6mm²/12AWG
  • Length: 6 metres
  • Material Conductor: Tinned Copper Wire
  • Connector: MC4 (crimped)
Controller to Battery Cable
  • Wire Diameter: 16mm²
  • Length: 1.5 metres
  • Material Conductor: Tinned Copper Wire
  • Connector: Battery ring (M8)
Complete DC Isolator
  • 32 Amps
  • Up to 1500V configurable
  • Includes: DC Switch Isolator, 2 Pairs of MC4 Female & Male and a pair of wrenches.
  • Size: 249.5 * 97.6 * 110 mm
60A Circuit Brekaer
Dual Cable Entry Gland
  • Material: ABS (Plastic)
  • Colour: Black

We have designed this kit to be connected in series. If for any reason you prefer to connect in parallel with Y connectors, let us know and we’ll provide them for free.

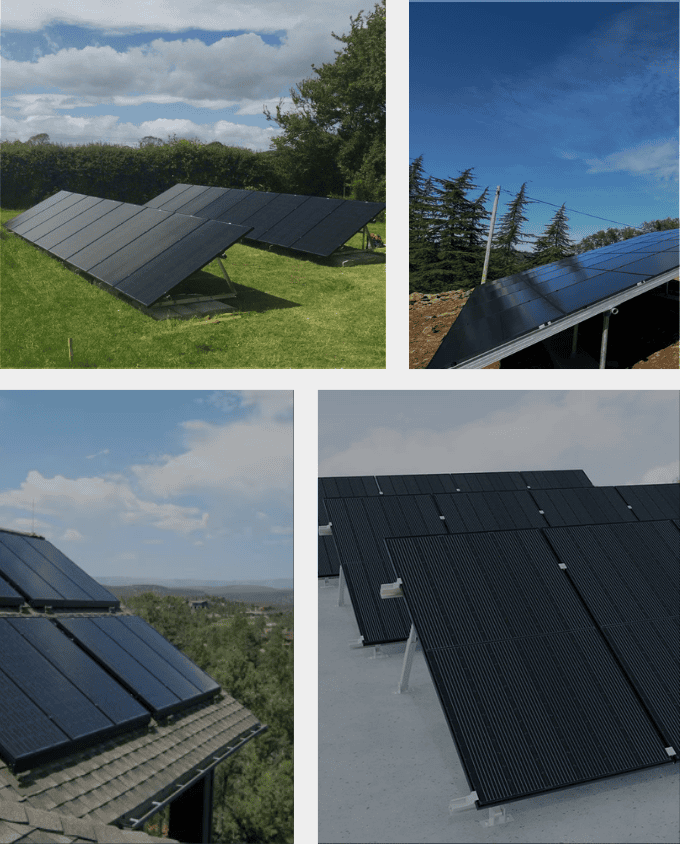

Voltanic panels can be installed on homes, tinyhomes, motorhomes, campervans, boats, remote homes, summer houses, workshops, static caravans, stables and any outside building that you can think of. You can mount them on your roof or on the ground.

70-80% Output – Clear sky midday sun but with the panel laid flat.
50-65% Output – Thin cloud, or intermittent small clouds.
10-20% Output – Overcast sky or rainy conditions.

No, this kit is only compatible with 24V, 36V or 48V batteries.

To determine the size of your kit, it is important to first understand the power requirements of your system. Please read our short blog post here which will help you determine what size kit you require. If in doubt, give us a message and we’ll be happy to help.

Solar panels rarely achieve their rated wattage in real-world conditions. Optimal performance requires 25°C temperature, peak sunlight, no obstructions, and perfect panel angle – conditions met simultaneously. Environmental factors typically reduce output. For practical estimates, 75% of rated wattage per peak sun hour is generally reasonable in most climates.
