Max-Power 800W 12/24V Solar Panel Kit

From £689.00 Inc. VAT

  • 30% Faster Charging – Get more power in less time with MPPT technology.
  • Durable & Reliable  – Maximum solar production with the latest N-Type TOPCon Technology, perfect for UK weather.
  • 24/7 Monitoring – Full control over your Voltanic system through our app.
  • Complete Kit – Everything you need, ready to plug and play with just basic tools.
  • Sleek Design – Our solar panels offer a modern take, built to blend seamlessly
Icon
What’s included?
4x 200W Solar Panels • 60A MPPT Controller • 6m Solar Cable • 1.5m Battery to Controller Cable • Circuit Breaker • Mounts • Cable Gland • DC Isolator • Batteries (optional)
Size Icon
1200L x 765W x 30H mm (each)

Save on Extras

2000W Pure Sine Wave Inverter | DC/AC
2000W Pure Sine Wave Inverter | DC/AC
Original price was: £235.00.Current price is: £211.50.
LCD Remote Meter Display (MPPT Compatible)
LCD Remote Meter Display (MPPT Compatible)
Original price was: £32.00.Current price is: £28.80.
Battery Terminal Fuse Block 40A–300A M8
Battery Terminal Fuse Block 40A–300A M8
Original price was: £12.00.Current price is: £10.80.
Solar Icon
Voltanic Solar is highly rated by customers on Trustpilot for exceptional quality and support. Read more.
Note: Delivery between May 19 - 23

BUY WITH CONFIDENCE

Whatsapp Support

We take a unique approach to customer service—chat with us anytime!

Easy Returns

Enjoy stress-free returns with no questions asked.

12 Year Warranty

Rest easy with our outstanding and reliable warranty coverage.

Everything you need

SIMPLY POWERED BY THE SUN

A complete solar solution, perfectly assembled and designed to get the most out of the system you choose.

It includes correctly sized wiring, mounting options, the latest solar panel technology, and a premium MPPT controller to handle it all.

And you don’t need to guess; we include a full installation guide with easy steps, plus WhatsApp support if you have any extra questions.

SMART DESIGN. EASY FIT.

LOW PROFILE

Voltanics panels offer a sleek design; frame, backsheet, and edge busbars all matched for a clean, uniform look that blends in.

EASY TO INSTALL

Pre-drilled mounting holes to fit a variety of mounting systems, plus corner 90cm cable with MC4 for easy wiring.

LATEST N-TYPE TOPCON TECHNOLOGY

Voltanic rigid panels are designed with the latest TOPCon N-Type technology to give you more power from the same sunlight.

24/7 MONITORING

Monitor your entire system from your phone. With built-in Bluetooth, you can use our mobile app to adjust settings, track solar performance, and keep an eye on your battery health, all in one place.

ALL-IN-ONE SOLAR SOLUTION

From the solar panel to your battery, you don’t need to worry about sourcing anything extra. We provide all the cabling, mounting, and essential equipment for a very easy setup.

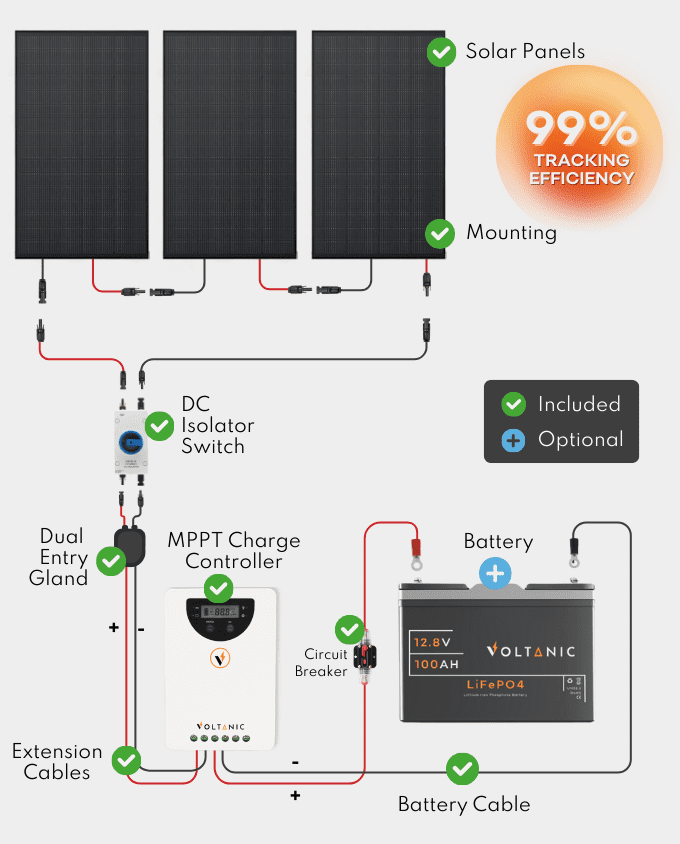

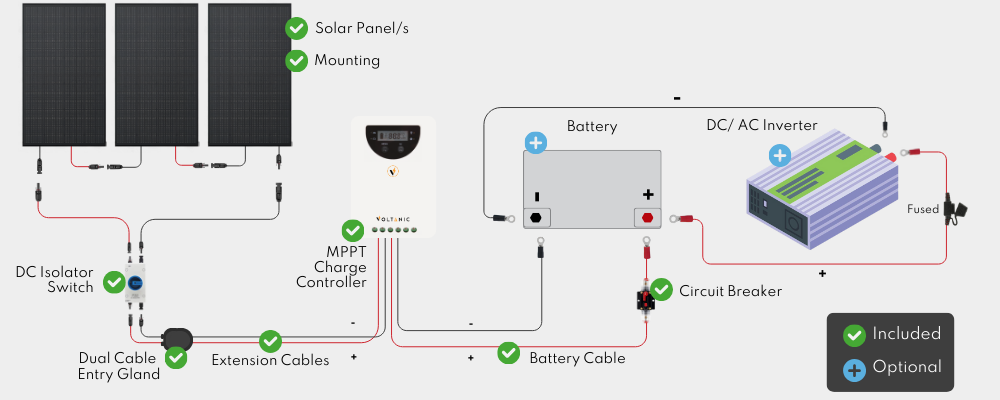

Series Connection for Maximum Efficiency

This kit is designed for series connection. This wiring setup is the most common and most effective for kits with MPPT controllers, letting you take full advantage of the increased voltage for better performance and safe battery charging.

Interested in something similar or have any questions?

We understand you may have unique requirements for your set-up. Contact us to modify any kit to your needs.

Get in Touch

THE VOLTANIC DIFFERENCE

Our kits come standard with a premium MPPT  controller, unlike most kits that include a PWM version (cheaper and less efficient).

This upgrade lets you harvest up to 30% more power, as MPPT controllers work smarter to capture up to 99% of available energy while keeping your battery safe at all times.

Compatible with all batteries, Lithium, Lead-Acid, Flooded, AGM, Liquid.

WORRY-FREE SET-UP

Don’t worry about wiring or crimping—every cable comes pre-crimped and ready to plug in, with the correct gauge and fuse included. We use insulated, TUV-approved pure tin copper cables to ensure minimal voltage drop.

A watertight cable gland is also included to safely route your cables through any roof or wall, along with a step-by-step guide to walk you through the setup.

YOUR DIY INSTALLATIONS

6 (45)
5 (48)
4 (54)
3
2
1
shedintas (1)

SPECS

200W Solar Panel
Max Peak Power (Pmax): 200W
Voltage at Max Power (Vmp): 19.20V
Current at Max Power (Imp): 10.42A
Open Circuit Voltage (Voc): 22.30V
Short Circuit Current (Isc): 11.14A
Size: 1200 × 765 × 30 mm
Weight: 9.4 kg
Connector: MC4
Cable: 90 cm, 2 mm²
Technology: N-Type TopCon

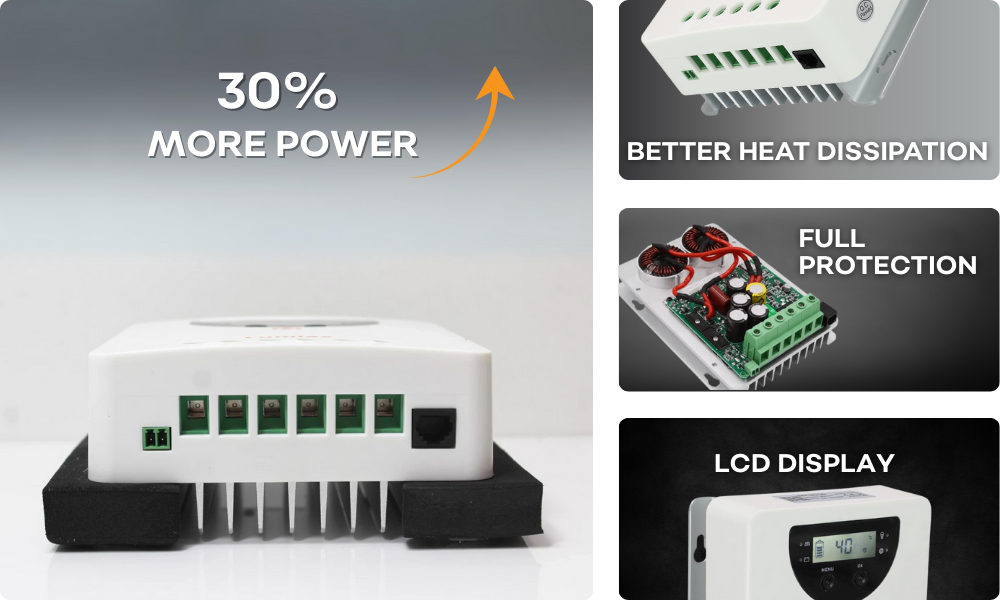

60A MPPT Controller
System Voltage: 12V/24V/36V/48V
Max Charging Current: 60A
Battery Types: Lead-Acid, Gel, AGM, Lithium
Max PV Input Voltage: 138V
Size: 262.5*186.5*97.5mm
Weight: 3 kg
Bluetooth: Yes (in-built, included)

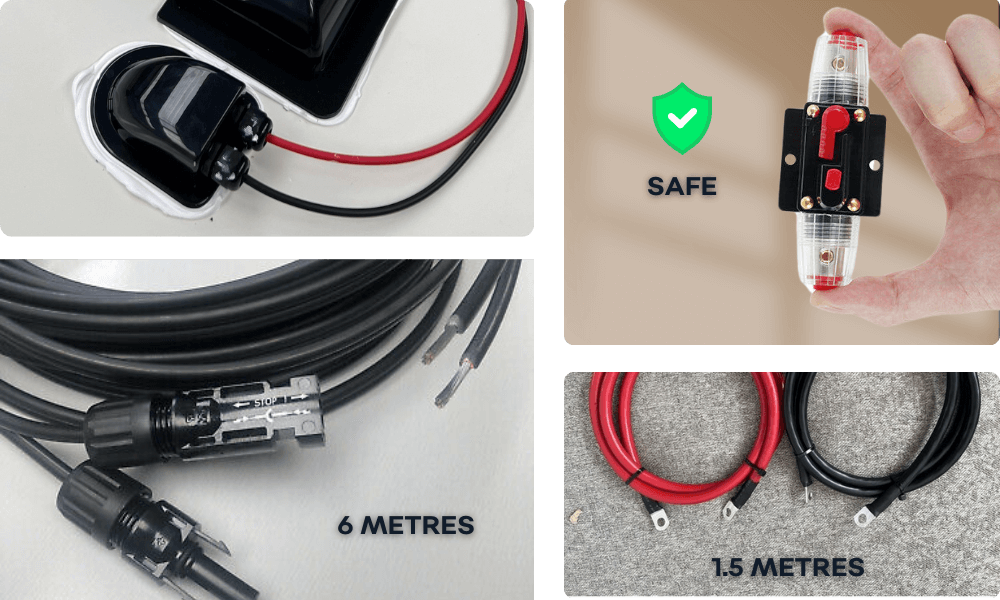

Cables
Solar Extension: 6 metres, 6 mm² / 12AWG
- Connector: MC4 (crimped)
- Material: Tinned Copper
Battery to Controller Cable: 1.5 metres, 16 mm² / 5AWG
- Connector: M8 ring (crimped)
Mounting & Other Extras
“Z” Brackets: 4 pcs (per panel), Aluminium, Height: 32 mm
Cable Gland: ABS, Dual Entry, Black
Circuit Breaker: Yes, 60A included
Battery (Optional)
100Ah 12V
Energy: 1280 kWh | Voltage: 12.8V | Charge/Discharge: 100A
Size: 307 × 169 × 208 mm | Weight: 10 kg
300Ah 12V
Energy: 3840 kWh | Voltage: 12.8V | Charge/Discharge: 250A
Size: 520 × 269 × 220 mm | Weight: 28 kg
DC Isolator
Rated Current: 32 Amps
Voltage Range: Up to 1500V (configurable)
Includes: DC Switch Isolator, 2 Pairs of MC4 Female & Male, Pair of wrenches
Size: 249.5 × 97.6 × 110 mm

You may also like…

  • Max-Power 1000W 24V Solar Panel KitWorry free set up

    Max-Power 1000W 24V Solar Panel Kit

    From £749.00 Inc. VAT
    ADD TO BASKET This product has multiple variants. The options may be chosen on the product page
  • Deluxe XL 1600W 24V Solar Panel Kit1600w solar kit for static caravan

    Deluxe XL 1600W 24V Solar Panel Kit

    From £1,149.00 Inc. VAT
    ADD TO BASKET This product has multiple variants. The options may be chosen on the product page
  • Deluxe XL 1.2kW Solar System with 4.2kW Hybrid Inverter 24V

    Deluxe XL 1.2kW Solar System with 4.2kW Hybrid Inverter 24V

    From £1,190.00 Inc. VAT
    ADD TO BASKET This product has multiple variants. The options may be chosen on the product page
Basket Close
Updating…
  • No products in the basket.

Continue shopping

GET IN TOUCH

Fill out the form below and we’ll be in touch soon.




    Most solar kits have a dirty little secret they don't tell you about:
    They waste valuable power.
    Here's the deal

    12V solar panels actually output around 20V

    12V leisure batteries charge at just over 12V*

    Standard PWM controllers simply drop those extra 8V — throwing away precious power

    In cloudy Britain where every watt counts, this is a problem.
    The Voltanic Difference

    Every Voltanic Kit takes those wasted volts and converts them into extra amps using Advanced MPPT (Maximum Power Point Tracking) Technology.

    Harvest 100% of your Solar Energy - No wasted watts

    Charge your Batteries 30% Faster

    More Power, Fewer Panels - Perfect for tight spaces

    Better Value Investment - Get what you pay for

    Maximum Power. Zero Waste.
    24V 20V 16V 12V 8V 20V Input 12V Output 8V Wasted as Heat
    24V 20V 16V 12V 8V 20V Input 12V Output Converting to Extra Amps
    Real World Comparison:
    100W Panel Performance
    Watts = Volts x Amps
    Controller Standard PWM Voltanic MPPT
    Panel Voltage 20V 20V
    Controller Charging Voltage 12V
    (PWM reduces voltage)    		 12V
    (MPPT reduces voltage)
    Amperage 5.8A
    (amps stays same)    		 8.2A
    (MPPT increases amps)
    Power Output 12V × 5.8A = 70W 12V × 8.2A = 98W
    Power Wastage ~30W
    (lost as heat)    		 ~2W
    (conversion loss)
