This kit is designed for off-grid enthusiasts with elevated energy needs. On a summer sunny day, you can charge a 100Ah battery in only 5-6 hours. Ideal for large motorhomes, static caravans or sheds.
Max-Power 600W (3x 200W) 12/24V Solar Panel Kit
£520.00 – £1,550.00
Buy with Confidence
At Voltanic, we have a strong customer-centric approach.
Money Back Guarantee
15 Year
Warranty
Installation Support
Free & Fast Delivery
Buy with Confidence
100%
Money Back
Not satisfied? Return it within
14 days for a refund. Terms Here.
Installation
Support
Any problems and we are
here to help. Always.
30 Year
Guarantee
That’s how much we believe in our products. Terms Here.
Free & Fast
Shipping
All orders sent out Next Day
Tracked Delivery.
Meticulously Designed. Expertly Crafted

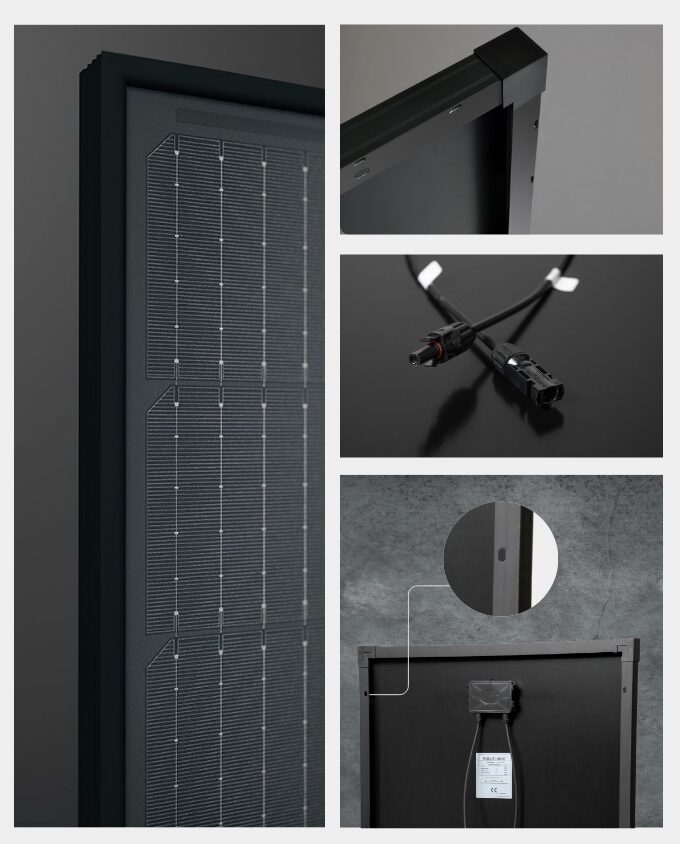

Latest Solar Cell Technology
Experience the pinnacle of solar energy technology with Voltanic Solar Panels. Monocrystalline Cells combined with PERC Technology make our panels some of the most efficient on the market today, giving you unparalleled power generation for superior performance.
Squeeze every drop of power
Ultra Fast Maximum Power Point Tracking
It’s no secret the UK can be a little grey. Whether you opt for the 30A or 60A version, worry no more as all Voltanic MPPT controllers excel in cloudy conditions. Better yet, they can extract up to 99.99% of the available power from your panel as compared with the 70% from PWM controllers.
Energy storage as it should be
Lighter. More storage. Longer lifespan.
Enjoy the benefits of a powerful, reliable & most importantly safe battery with LiFePO4 technology giving you peace of mind alongside epic performance.
The Power of 24V 120AH
114
slices of toast
134
cups of tea
58
hours of laptop use
288
phone recharges
120
minutes of hair drying
6
days powering
mini-fridge

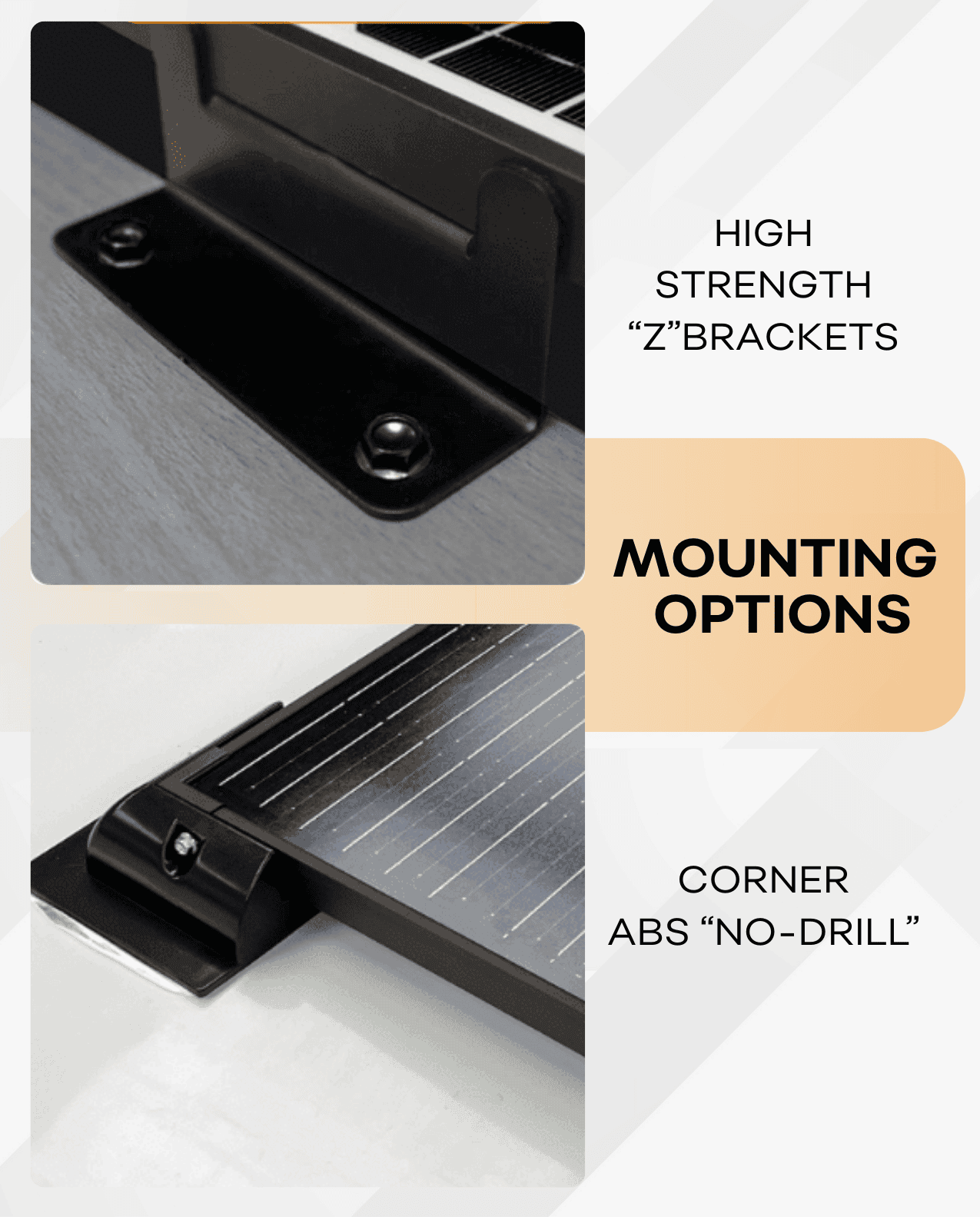

Choose your own brackets
Mounting options for every need
You have the choice between two options for installing your panels: the versatile Z-Bracket, suitable for any surface, and the no-drill mounting bracket for those who prefer to avoid drilling holes.

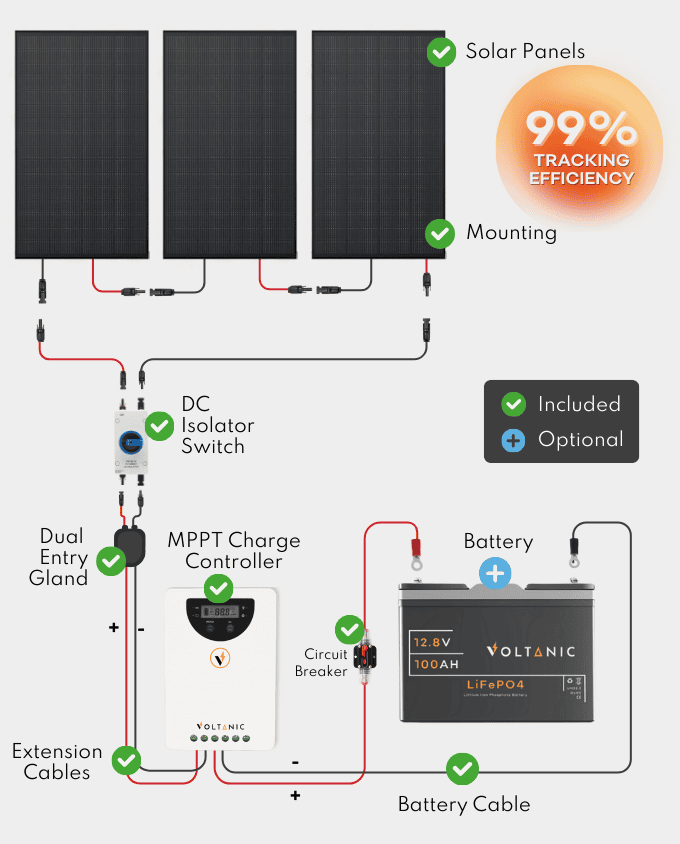

All Accessories Included
Worry-Free Set-Up
The 6 metre cable gives ample length to allow for flexible placement of your components whilst the DC Isolator ensures safety while working on your solar array.

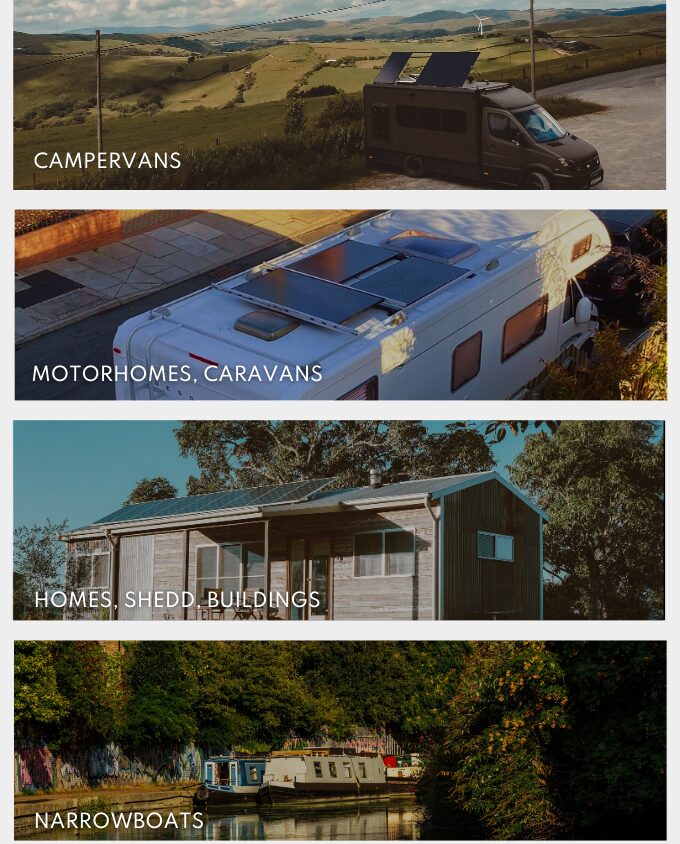

Off-Grid Living Made Easy
Wide Range of Application
Motorhome &
Campervans
Homes &
Cabins
Caravans &
Mobilehomes
Narrowboats &
Houseboats
Motorhomes
&
Campervans
Homes, Sheds
&
Cabins
Caravans
&
Mobilehomes
Narrowboats
&
Houseboats

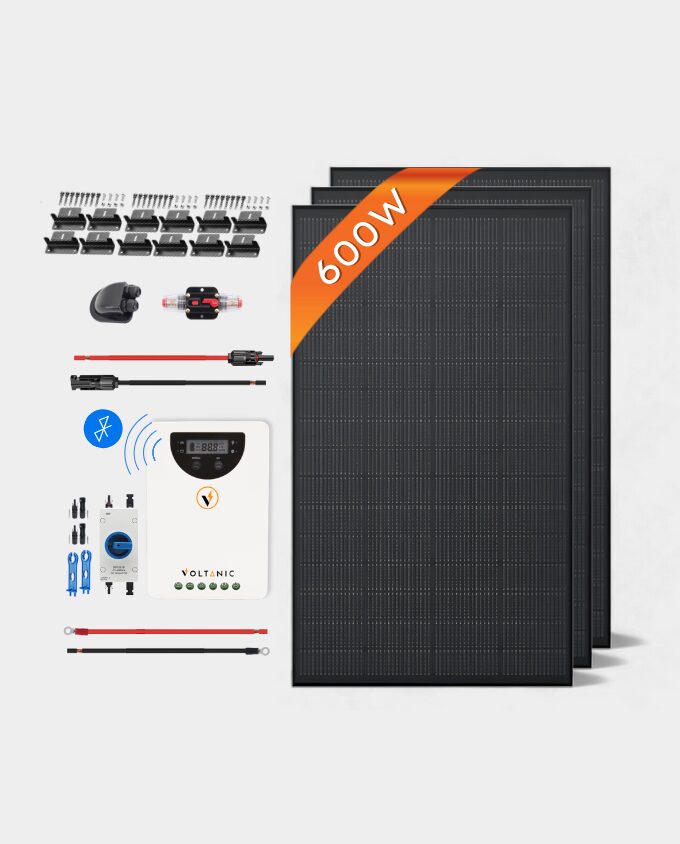

What's included in the Kit?
Optional:
- Adhesive Sealant | SikaFlex 522 (white 300ml)
- 2x 120Ah Lithium LiFePO4 Battery (24V)
- Pair 1.5 Metre Battery Cable 16mm² with 60A Circuit Breaker
- Pair 1.5 Metre Battery Cable 6mm² with 30A Fuse
- 1000W Pure Sine Wave Inverter

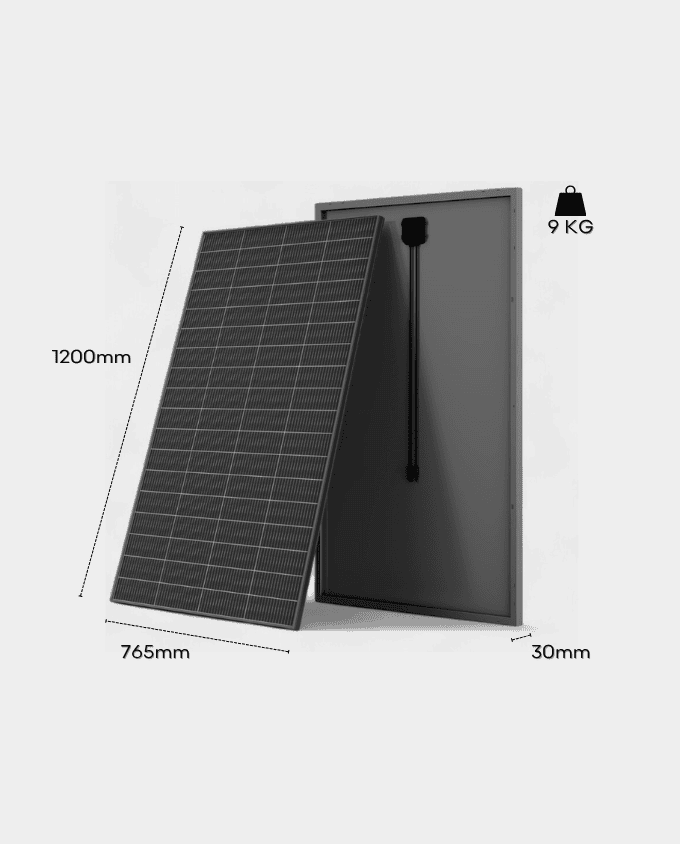

Specifications:
- Peak Power Watts: 200W
- Maximum Power Voltage: 18.76V
- Maximum Power Current: 10.66A
- Open Circuit Voltage: 21.79V
- Short Circuit Current: 11.24A
- Dimensions: 1375 x 765 x 30 mm
- Weight: 10.87 kg
- Cables: 90cm, 2.5 mm
- Connectors: MC4
For more information please check the Datasheet here.
- System Voltage: 12/24V
- Maximum Charging Current: 30A
- Maximum Wattage: 390/780 Watt
- MPPT Tracking Efficiency: 99.9%
- Battery Compatibility: Gel, AGM, Liquid, Lithium (default: Gel)
- Maximum Volt on PV Terminal: 55V
- Dimensions: 189 x 182 x 64 mm
- Weight: 1.3 kg
For more information please check the Datasheet here.
- System Voltage: 12/24/36/48V
- Maximum Charging Current: 60A
- Maximum Wattage: 750/1500/2250/3000W
- MPPT Tracking Efficiency: 99.9%
- Battery Compatibility: Gel, AGM, Liquid, Lithium (default: Gel)
- Maximum Volt on PV Terminal: 150V
- Dimensions: 263 x 187 x 98 mm
- Weight: 3 kg
For more information please check the Datasheet here.
- Wire Diameter: 6mm²/12AWG
- Length: 6 metres
- Material Conductor: Tinned Copper Wire
- Temperature: -40° to 90° C
- Connector: MC4 (Pre-Crimped)
- Material: ABS (Acrylonitrile Butadiene Styrene)
- Colour: Black
- Material: Aluminium Alloy
- Height: 32 mm
Includes:
- 4x Z-Brackets
- All Screws, Nuts & Bolts
- Extra Washers & Spacers
- Material: ABS (Acrylonitrile Butadiene Styrene)
- Colour: Black
- Height: 6 cm
Includes:
- 4x Corner Mounts
- All Screws, Nuts & Bolts
- System Voltage: 12V (12.8V)
- Recommended Charging Current: 20-50A
- Maximum Charging Current: 50A
- Max Modules in Series: 4 pieces
- Max Cont. Discharge Current: 100A
- Dimensions: 330 x 170 x 230 mm (L/W/H)
- Weight: 11.30 kg
- Terminal: M8 Screw Stud
- Output Continuous Power: 1000W
- Surge Capacity (Peak Power): 2000W
- Fuse (A): 30A x 4
- Rated Input DC: 12/24/48V Battery
- Rated Frequency (Hz): 50 or 60
- Dimensions: 420 x 225 x 150 mm (L/W/H)
- Weight: 3.7 kg
- 2x 5V, 2.1A USB + 2x UK Sockets
FAQ
Voltanic solar kits can be installed on homes, tinyhomes, motorhomes, campervans, boats, remote homes, tiny homes, summer houses, workshops, static caravans, stables and any outside building. Basically anywhere you like.
To determine the size of your kit, it is important to first understand the power requirements of your system. Please read our short blog post here which will help you determine what size kit you require. If in doubt, give us a message and we’ll be happy to help.
•100% Output – Clear sky midday sun with the panel fully tilted toward the sun’s position in the sky.
•75-85% Output – Clear sky midday sun but with the panel laid flat
•50-65% Output – Thin cloud, or intermittent small clouds
•10-20% Output – Midday overcast sky or rainy conditions
•75-85% Output – Clear sky midday sun but with the panel laid flat
•50-65% Output – Thin cloud, or intermittent small clouds
•10-20% Output – Midday overcast sky or rainy conditions
This kit is designed to work with 24V systems when choosing a 30A MPPT controller, and it is non-expandable. If you require 600W for your 12V battery or wish for expansion in the future, opt for a 60A controller.
The 600W Kit is compatible with 12V if you choose a 60A MPPT Controller.
All Voltanic Panels come with 12 year material and craftmanship warranty as well as an industry leading 30 year output power guarantee. This means that we guarantee that the panel will produce 80% of it’s power rating after 30 years. If not, we’ll give you a new one. You can read the terms here.
