480W 12V/24V MPPT All-Black Solar Panel Kit

480W 12V/24V MPPT All-Black Solar Panel Kit - Image 2

480W 12V/24V MPPT All-Black Solar Panel Kit - Image 3

480W 12V/24V MPPT All-Black Solar Panel Kit - Image 4

480W 12V/24V MPPT All-Black Solar Panel Kit - Image 5

480W 12V/24V MPPT All-Black Solar Panel Kit

From £419.00 Inc. VAT

30% Faster Charging – Get more power in less time with MPPT technology.
Durable & Powerful – Maximum solar production with PERC Half-Cut Technology, perfect for UK weather.
Complete Kit – Everything you need, ready to plug and play with just basic tools.
24/7 Monitoring – Add Bluetooth for full control over your Voltanic system through our app.
Compact and Easy-to-Install – Simple setup with step-by-step instructions.
Sleek Design – Our solar panels offer a modern take, built to blend seamlessly.

What’s included?

480W Solar Panels • 40A 12/24V MPPT Controller • 6m Solar Cable • 1.5m Battery to Controller Cable • Circuit Breaker • Mounts • Cable Gland • DC Isolator • Installation Guide • Battery/Inverter (optional)

Panels

Mounts

Bluetooth

Clear

Add Extras

300AH 12V LifePO4 Lithium Leisure Battery

2000W Pure Sine Wave Inverter | DC/AC - 12V

Quantity Qty

Voltanic Solar is highly rated by customers on Trustpilot for exceptional quality and support. Read more.

Note: Delivery between May 19 - 23

BUY WITH CONFIDENCE

We take a unique approach to customer service—chat with us anytime!

Enjoy stress-free returns with no questions asked.

Rest easy with our outstanding and reliable warranty coverage.

Everything you need

SIMPLY POWERED BY THE SUN

A complete solar solution, perfectly assembled and designed to get the most out of the system you choose.

It includes correctly sized wiring, mounting options, the latest solar panel technology, and a premium MPPT controller to handle it all.

And you don’t need to guess; we include a full installation guide with easy steps, plus WhatsApp support if you have any extra questions.

SMART DESIGN. EASY FIT.

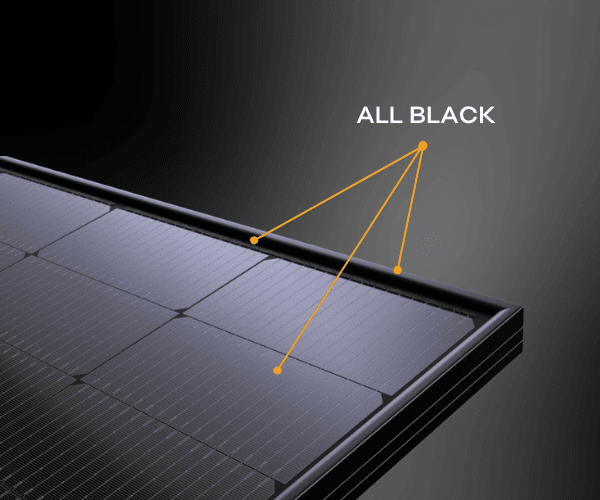

LOW PROFILE

Voltanics panels offer a sleek design; frame, backsheet, and edge busbars all matched for a clean, uniform look that blends in.

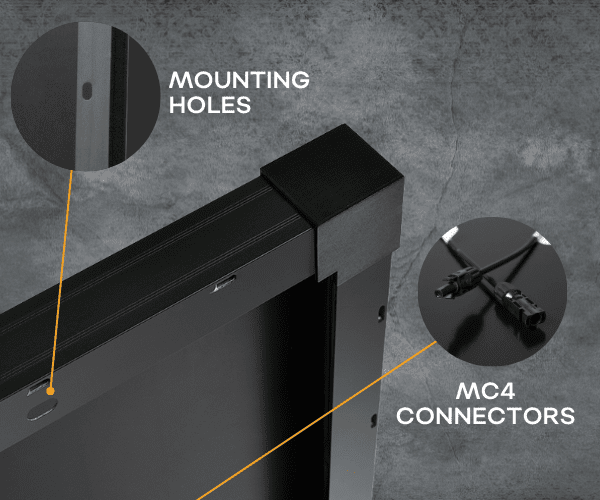

EASY TO INSTALL

Pre-drilled mounting holes to fit a variety of mounting systems, plus corner 90cm cable with MC4 for easy wiring.

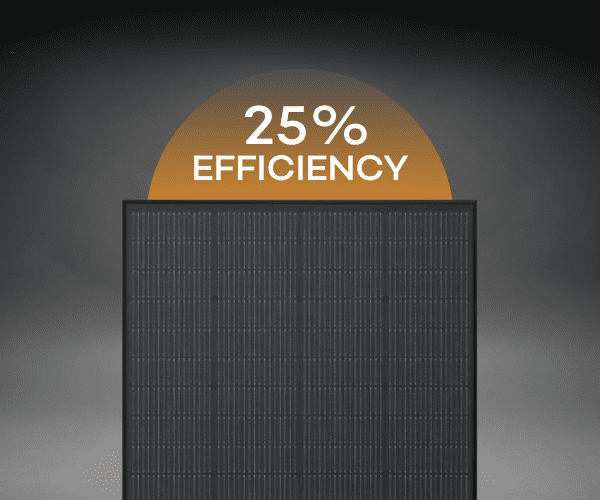

LATEST N-TYPE TOPCON TECHNOLOGY

Voltanic rigid panels are designed with the latest TOPCon N-Type technology to give you more power from the same sunlight.

MORE POWER IN LESS SPACE

Thanks to advanced N-Type TOPCon cells, Voltanic panels produce the same power in less space, making them compact and over 10% shorter, the perfect size for fitting solar panels into your campervan or motorhome.

24/7 MONITORING

Add Bluetooth to your controller and monitor your entire system from your phone. Use our mobile app to adjust settings, track solar performance, and keep an eye on your battery health — all in one place.

*Bluetooth is optional

ALL-IN-ONE SOLAR SOLUTION

From the solar panel to your battery, you don’t need to worry about sourcing anything extra. We provide all the cabling, mounting, and essential equipment for a very easy setup.

Picture for reference only. The actual number of panels and the MPPT model may vary depending on the system.

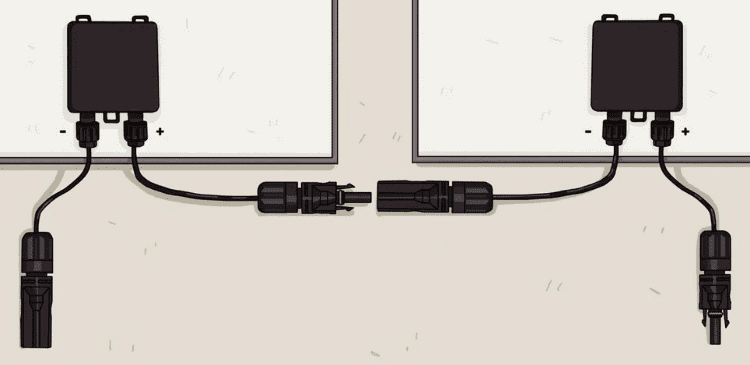

Series Connection for Maximum Efficiency

This kit is designed for series connection. This wiring setup is the most common and most effective for kits with MPPT controllers, letting you take full advantage of the increased voltage for better performance and safe battery charging.

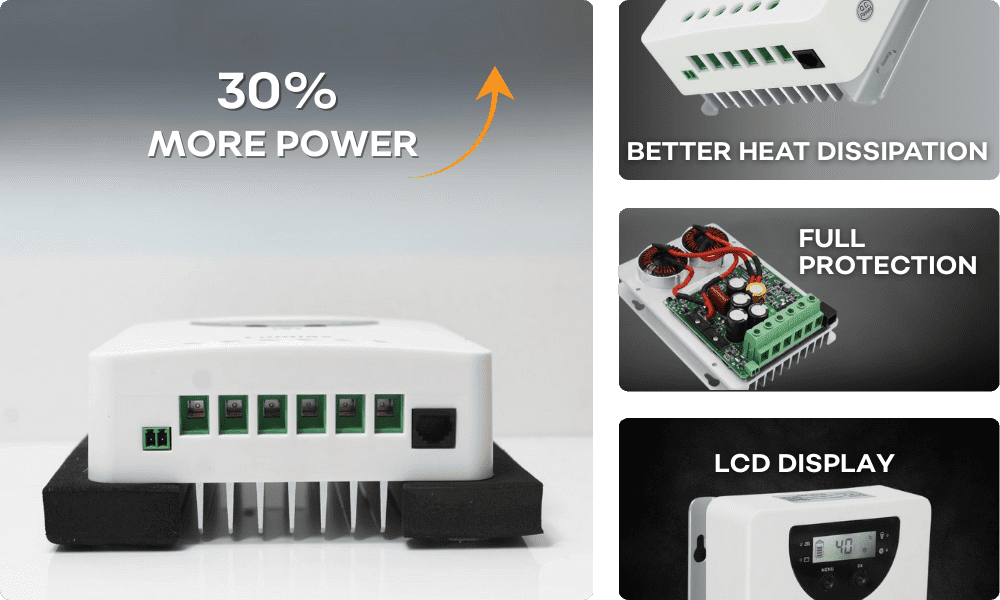

THE VOLTANIC DIFFERENCE

Our kits come standard with a premium MPPT controller, unlike most kits that include a PWM version (cheaper and less efficient).

This upgrade lets you harvest up to 30% more power, as MPPT controllers work smarter to capture up to 99% of available energy while keeping your battery safe at all times.

Compatible with all batteries, Lithium, Lead-Acid, Flooded, AGM, Liquid.

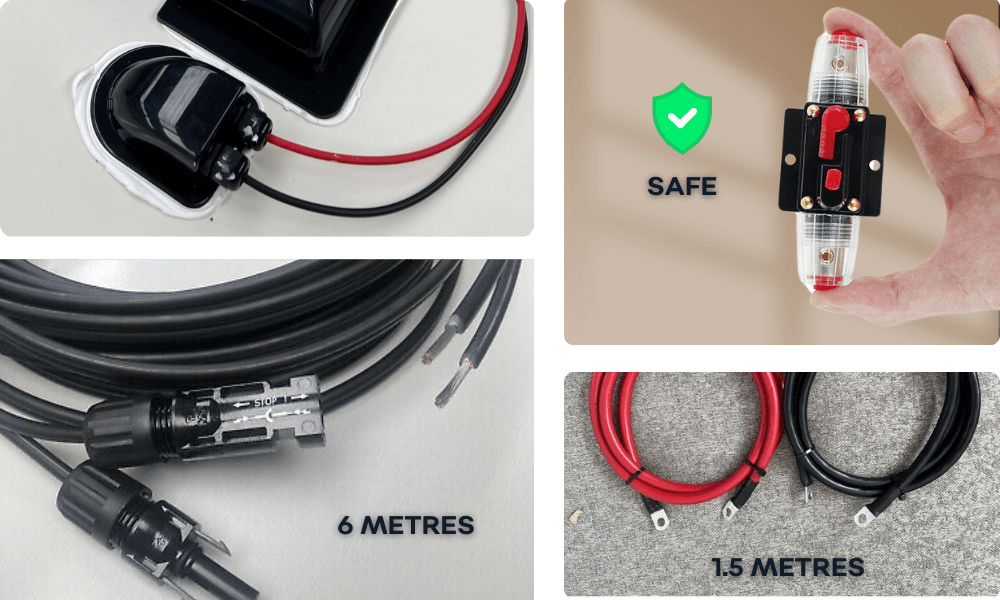

WORRY-FREE SET-UP

Don’t worry about wiring or crimping—every cable comes pre-crimped and ready to plug in, with the correct gauge and fuse included. We use insulated, TUV-approved pure tin copper cables to ensure minimal voltage drop.

A watertight cable gland is also included to safely route your cables through any roof or wall, along with a step-by-step guide to walk you through the setup.

POWER YOUR APPLIANCES FOR 4 DAYS* IN SUMMER.

*Based on 5 peak sun hours in summer. The actual runtime may vary.

YOUR DIY INSTALLATIONS

SPECS

120W Solar Panel

Max Peak Power (Pmax): 120W

Voltage at Max Power (Vmp): 19.07V

Current at Max Power (Imp): 6.29A

Open Circuit Voltage (Voc): 21.96V

Short Circuit Current (Isc): 6.62A

Size: 990 × 580 × 25 mm

Weight: 6.24 kg

Connector: MC4

Cable: 90 cm, 2 mm²

Technology: N-Type TopCon

160W Solar Panel

Max Peak Power (Pmax): 160W

Voltage at Max Power (Vmp): 16.38V

Current at Max Power (Imp): 9.77A

Open Circuit Voltage (Voc): 19.43V

Short Circuit Current (Isc): 10.40A

Size: 1055*765*30mm

Weight: 8.27kg

Connector: MC4

Cable: 90 cm, 2 mm²

Technology: N-Type TopCon

40A MPPT Controller

System Voltage: 12V/24V

Max Charging Current: 40A

Max Input Power: 520W/1040W

Battery Types: Lead-Acid, Gel, AGM, Lithium

Max PV Input Voltage: 95V

Size: 197 *137 *67 mm

Weight: 1.3 kg

Bluetooth: Yes (optional upgrade)

Cables

Solar Extension: 6 metres, 6 mm² / 12AWG

- Connector: MC4 (crimped)

- Material: Tinned Copper

Battery to Controller Cable: 1.5 metres, 16 mm² / 5AWG

- Connector: M8 ring (crimped)

Mounting & Other Extras

“Z” Brackets: 4 pcs (per panel), Aluminium, Height: 32 mm

No-Drill Mounts: 4 corners (per panel), ABS, Height: 6 cm

Cable Gland: ABS, Dual Entry, Black

Circuit Breaker: Yes, 40A included

Battery (Optional)

100Ah 12V

Energy: 1280 kWh | Voltage: 12.8V | Charge/Discharge: 100A

Size: 307 × 169 × 208 mm | Weight: 10 kg

300Ah 12V

Energy: 3840 kWh | Voltage: 12.8V | Charge/Discharge: 250A

Size: 520 × 269 × 220 mm | Weight: 28 kg

Categories: All Products, Solar Kits, 12V Series Tags: kit-480w, Solar-Kit

You may also like…

Max-Power 800W 12/24V Solar Panel Kit
From £599.00 Inc. VAT

ADD TO BASKET This product has multiple variants. The options may be chosen on the product page
Max-Power 600W 12V/24V MPPT All-Black Solar Panel Kit
From £499.00 Inc. VAT

ADD TO BASKET This product has multiple variants. The options may be chosen on the product page
Max-Power 1000W 24V Solar Panel Kit
From £749.00 Inc. VAT

ADD TO BASKET This product has multiple variants. The options may be chosen on the product page

Updating…

Dual Cable Entry Gland (Black)

Quantity Qty

£8.00

Delivery:

Free

VAT:

Included

No products in the basket.

Subtotal: £8.00

Checkout

*Apply coupon at checkout

Continue shopping

Most solar kits have a dirty little secret they don't tell you about:

They waste valuable power.

Here's the deal

12V solar panels actually output around 20V

12V leisure batteries charge at just over 12V*

Standard PWM controllers simply drop those extra 8V — throwing away precious power

In cloudy Britain where every watt counts, this is a problem.

The Voltanic Difference

Every Voltanic Kit takes those wasted volts and converts them into extra amps using Advanced MPPT (Maximum Power Point Tracking) Technology.

Harvest 100% of your Solar Energy - No wasted watts

Charge your Batteries 30% Faster

More Power, Fewer Panels - Perfect for tight spaces

Better Value Investment - Get what you pay for

Maximum Power. Zero Waste.

Real World Comparison:

100W Panel Performance

Watts = Volts x Amps

Controller	Standard PWM	Voltanic MPPT
Panel Voltage	20V	20V
Controller Charging Voltage	12V (PWM reduces voltage)	12V (MPPT reduces voltage)
Amperage	5.8A (amps stays same)	8.2A (MPPT increases amps)
Power Output	12V × 5.8A = 70W	12V × 8.2A = 98W
Power Wastage	~30W (lost as heat)	~2W (conversion loss)
