£75.00 Inc. VAT
Ready for a hassle-free installation with pre-drilled holes and a 90cm cable with MC4 connectors. Designed with anti-reflective coating and IP68 waterproofing for added durability and comfort.
Latest-generation PERC cells, together with excellent raw materials, allow an increase on energy conversion efficiency up to 10% more than conventional solar panels.
Corrosion Resistance, High-Transmission Tempered Glass, Reinforced Frames and IP68 Waterproofing means these panels will stand the test of time.
With Voltanic, beauty and efficiency aren’t just a first impression; they’re a lasting commitment. A robust warranty backs every panel, ensuring that even after 30 years, your panels will still be generating energy at no less than 80% of their original power.
Peak Power Watts (Pmax): 120W
Maximum Voltage (Vmp): 19.28V
Maximum Current (Imp): 6.22A
Open Circuit Voltage (Voc): 22.03V
Short Circuit Current (Isc): 6.54A
Cell Technology: Monocrystalline
Cell type: 10MBB PERC Half-cut 182 x 91 mm (32 cells)
Dimensions: 1070 * 580 * 30 mm
Weight: 6.37 kg
Cables: 90cm, 2.5mm
Connectors: MC4
Frame: Aluminium

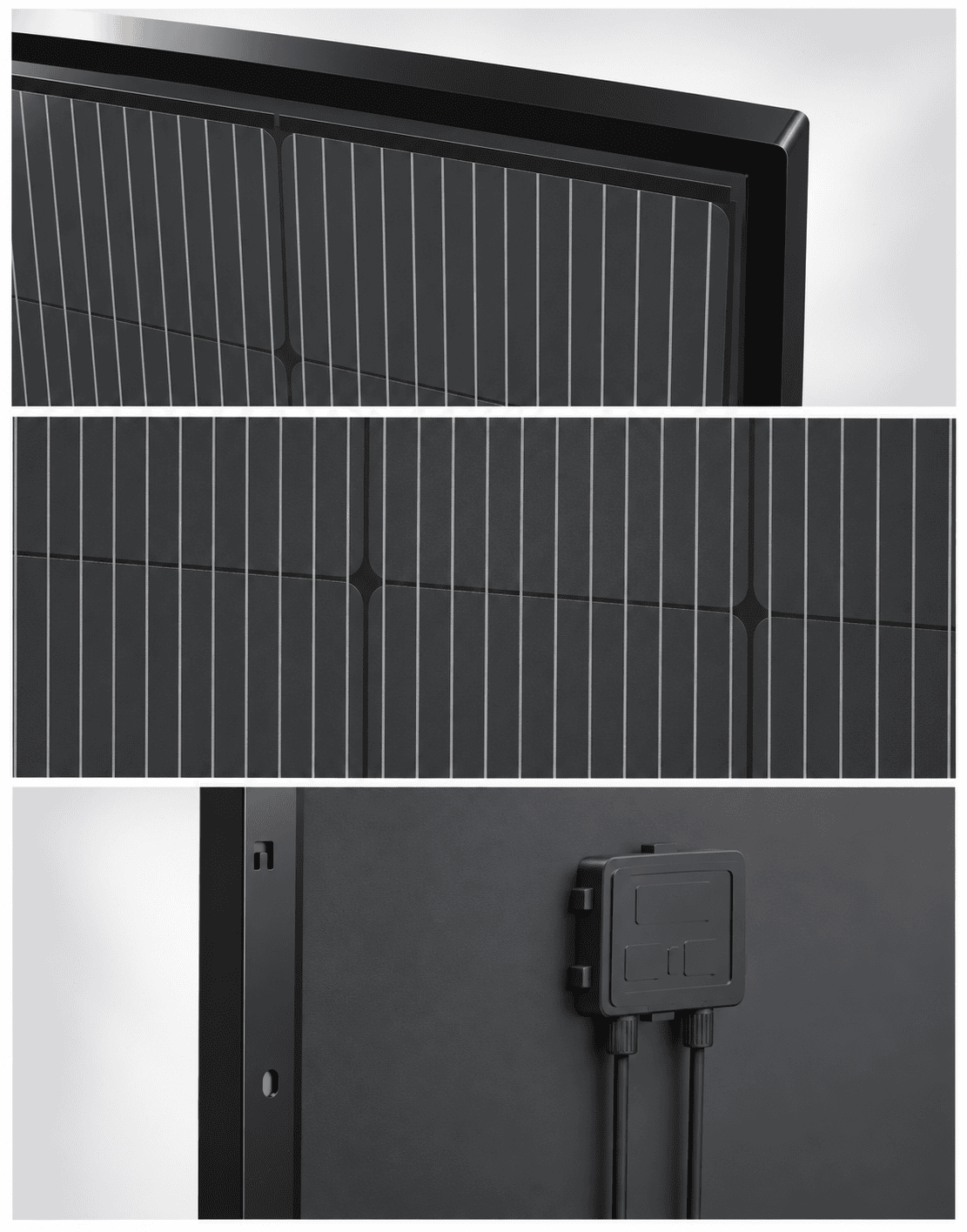

Junction Box: IP67 Waterproof
Front glass: 3.2mm Tempered Glass
Voltanic panels can be installed on homes, tinyhomes, motorhomes, campervans, boats, remote homes, tiny homes, summer houses, workshops, static caravans, stables and any outside building. You can mount them of your roof or on the ground.
Yes, all Voltanic panels will work with 12v battery systems. Note that our 400w panel has a high voltage so if you are thinking of buying this panel, you should use our MPPT controller for maximum yield. Contact us if you’re not sure and we’ll be happy to advise.
•70-80% Output – Clear sky midday sun but with the panel laid flat.
•50-65% Output – Thin cloud, or intermittent small clouds.
•10-20% Output – Overcast sky or rainy conditions.
Inverter: The inverter converts the 12V from the battery into a voltage suitable for your house-hold appliances (230V).
To determine the number of solar panels you require, it is important to first understand the power requirements of your system. Please read our short blog post here which will help you determine how much power you need. Contact us if you need a hand.
Solar panels rarely achieve their rated wattage in real-world conditions. Optimal performance requires 25°C temperature, peak sunlight, no obstructions, and perfect panel angle – conditions met simultaneously. Environmental factors typically reduce output. For practical estimates, 75% of rated wattage per peak sun hour is generally reasonable in most climates.
