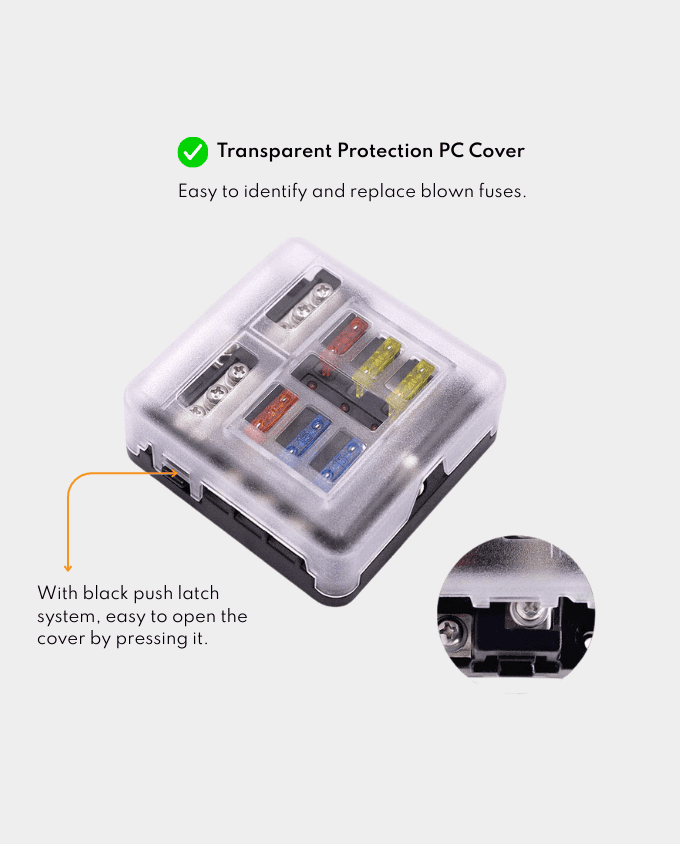

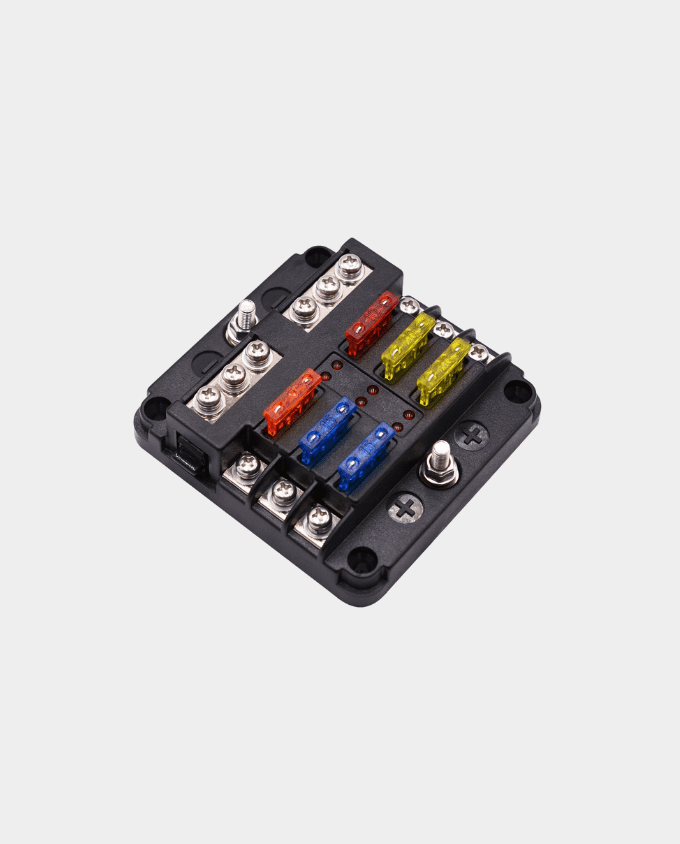

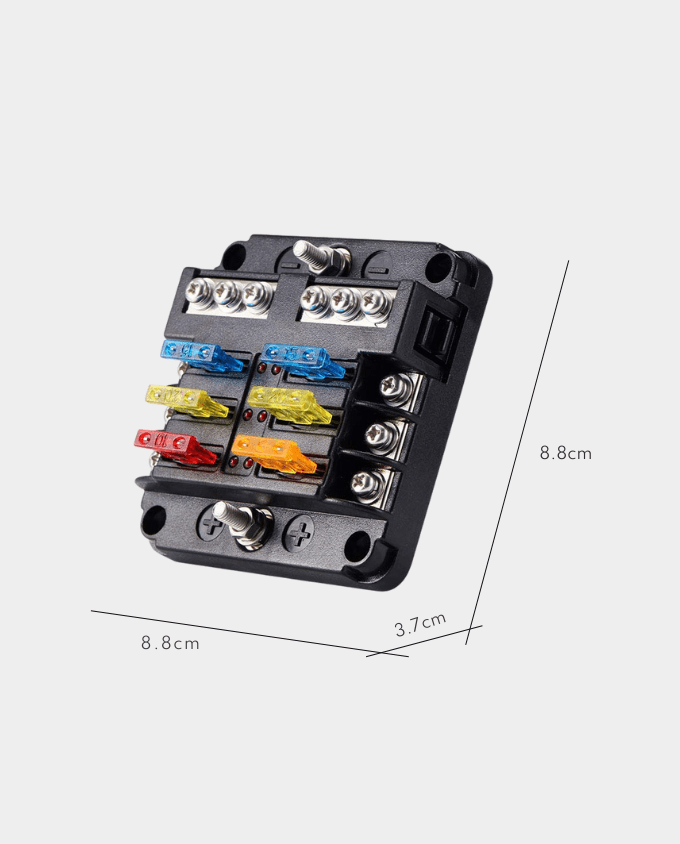

6 Way Fuse Box l Blade Fuse Board Block with LED Indicator

£15.00 Inc. VAT

Our 6-Way Fuse Block is designed for safe and tidy power distribution in 12V–24V DC systems.

  • Rated Capacity – Up to 100A (30A max per circuit), suitable for automotive and marine DC applications.

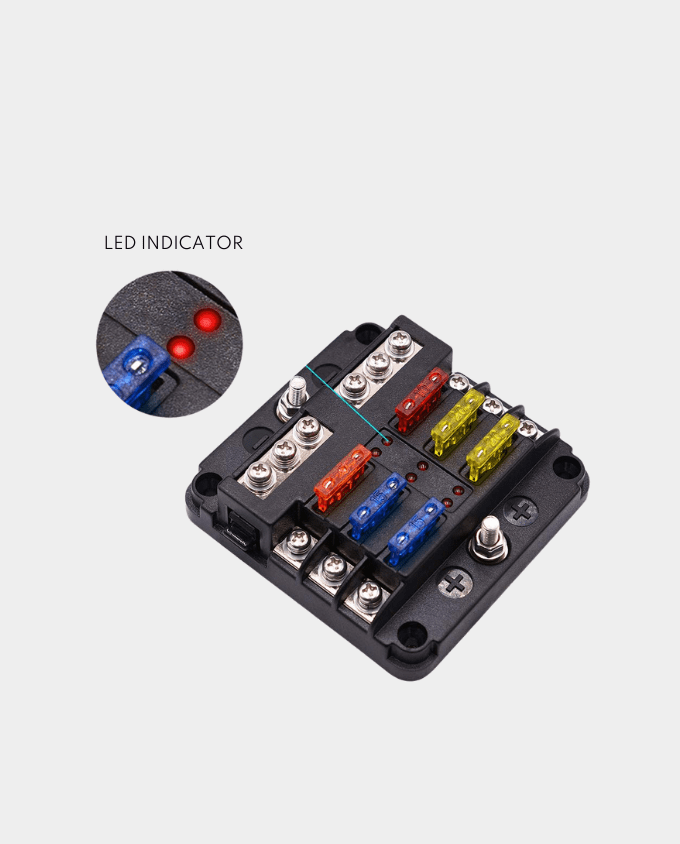

  • LED Indicator – Each circuit has a red LED that lights up when a fuse is blown.

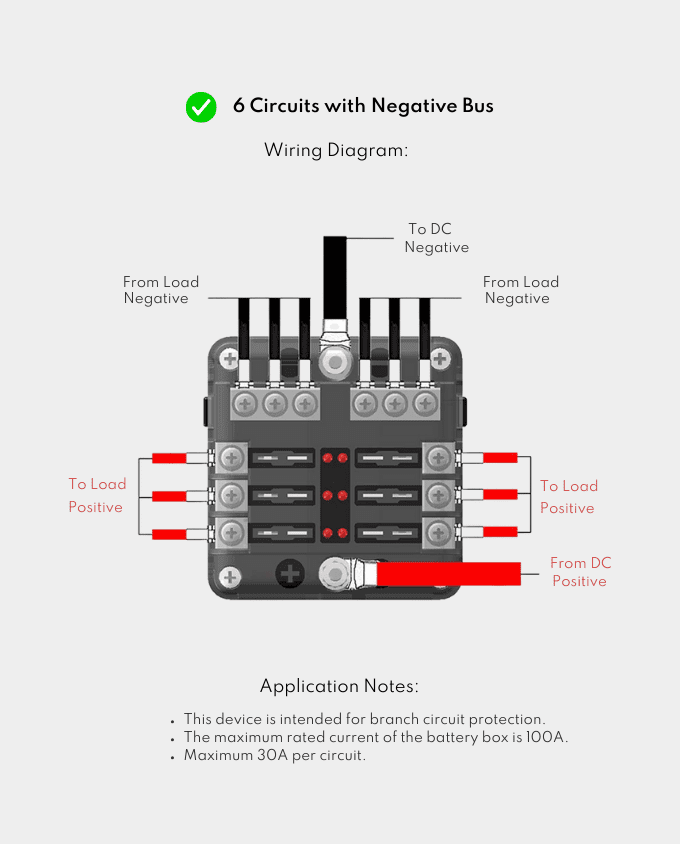

  • Neat Wiring – 6 positive and 6 negative terminals keep your setup clean, organised and reliable.
  • Specifications – Input 12–32V DC, max 100A panel, M5 main input studs (4–6 AWG), M4 outputs (12–16 AWG), operating temperature -30℃ to +85℃.

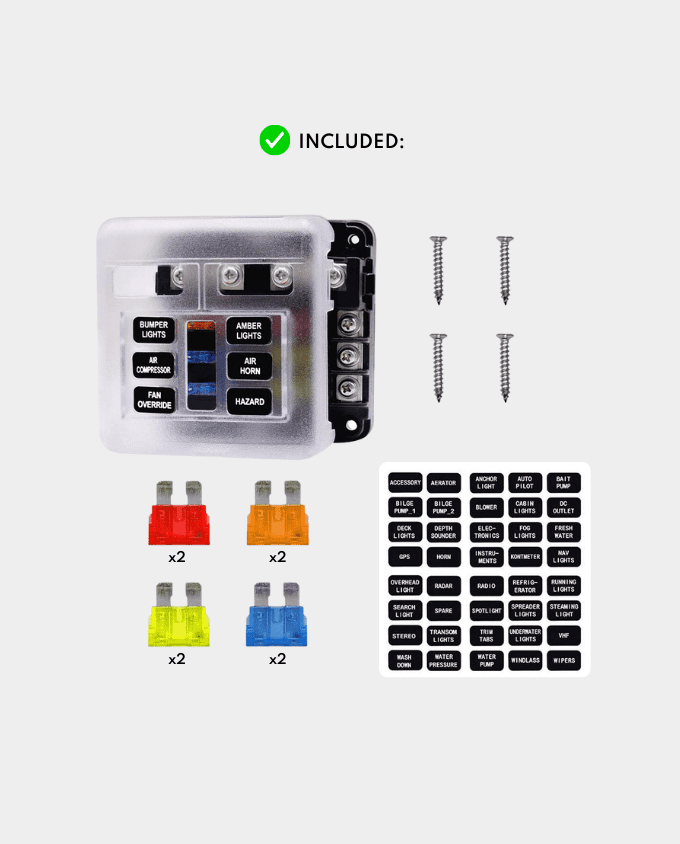

  • Package Includes – 6-Way Fuse Block with cover, 2×20A, 2×15A, 2×10A, 2×5A fuses, labels, and mounting screws.
