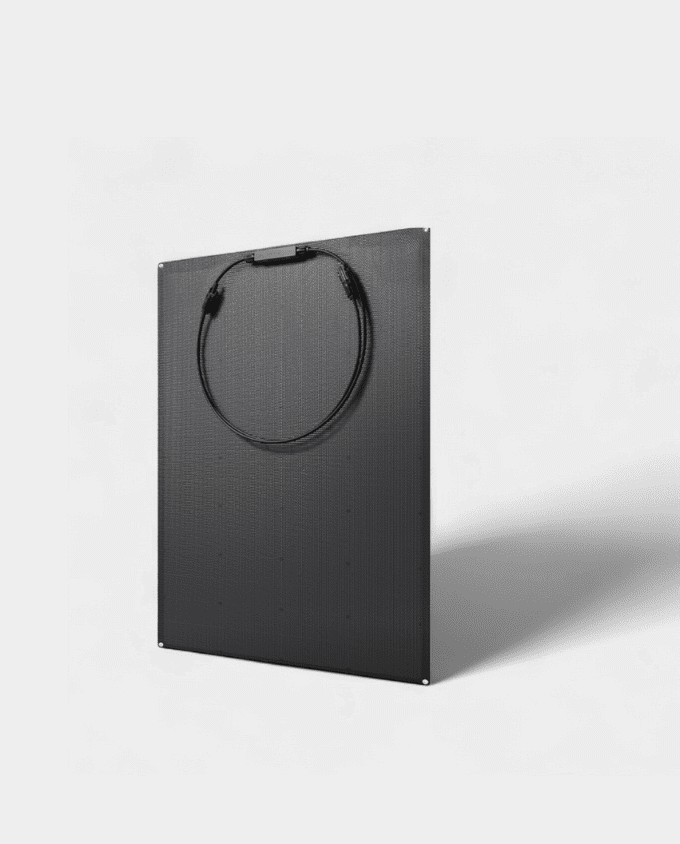

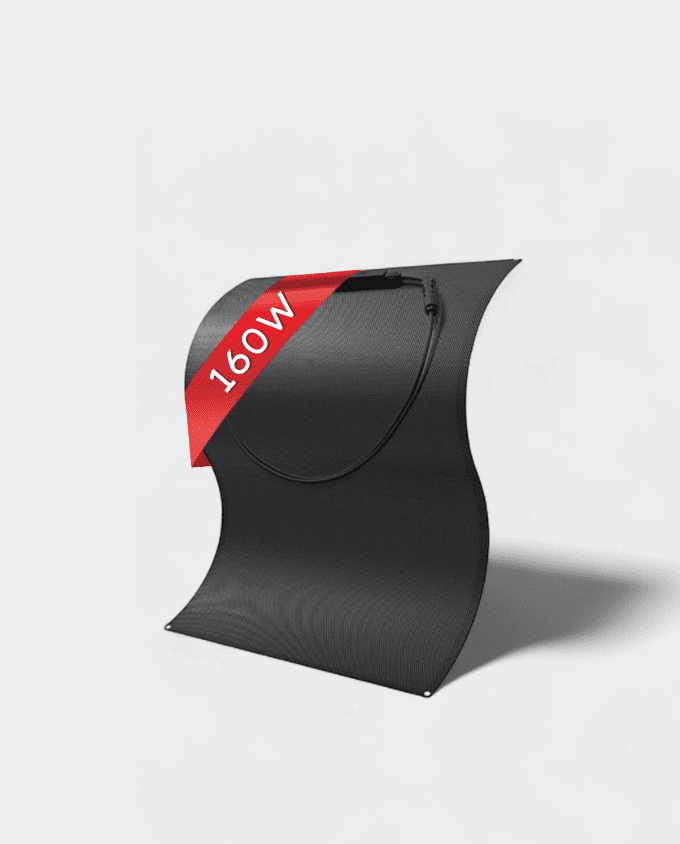

160W Flexible HPBC Solar Panel 12V All-Black
160W Flexible HPBC Solar Panel 12V All-Black - Image 2
160W Flexible HPBC Solar Panel 12V All-Black - Image 3
160W Flexible HPBC Solar Panel 12V All-Black - Image 4

160W Flexible HPBC Solar Panel 12V All-Black

£149.00 Inc. VAT

Sikaflex 522 Adhesive Sealant INCLUDED FREE

Professional-grade adhesive to bond your panel to the roof. Choose your colour below. Limited Stock.
WORTH
£14
  • • Durable & Powerful – 25.8% efficiency with advanced HPBC technology for maximum solar production.
  • • Low Profile All-Black Design – No front busbars for a clean, elegant, and minimalist appearance.
  • • Ultra-Thin & Lightweight – Portable and easy to handle, move, or mount.
  • • Versatile & Flexible – Easily adapts to curved surfaces, perfect for a variety of outdoor applications.
Panel dimensions
1035L x 765W x 2.5H mm
Daily energy output
0.8 kWh/day (in summer)

Save on Extras

Voltanic extension cable 4mm2
6M x 4mm² Set Solar Extension Cables MC4
Original price was: £23.00.Current price is: £20.70.
DC Isolator Switch | 32A 1500V
DC Isolator Switch | 32A 1500V
Original price was: £30.00.Current price is: £27.00.
Y branch connector
Pair Y Branch Solar Panel Connector MC4
Original price was: £12.00.Current price is: £10.80.
4.9 ★ on Google · Top Quality Store · 200+ verified customers · Exceptional quality and support. Read reviews.
⚠️ Select all options above to continue

BUY WITH CONFIDENCE

Whatsapp Support

We take a unique approach to customer service—chat with us anytime!

Easy Returns

Enjoy stress-free returns with no questions asked.

5 Year Warranty

Rest easy with our outstanding and reliable warranty coverage.

SLEEK AND DURABLE

Designed with a sleek, modern look, this lightweight, all-black flexible solar solution integrates cutting-edge HPBC technology for unmatched efficiency and durability.

CHARGE FASTER

With an excellent efficiency rating of 25.8%, Voltanics flexible models allow you to charge even faster.

HPBC (Hybrid Passivated Back Contact) is an advanced solar cell design that eliminates front-side busbars, allowing more sunlight to reach the cell surface.

Unlike conventional designs, HPBC cells optimise internal conductivity and minimise energy loss, which means more of the sunlight hitting your panel is converted into usable power—especially useful in low-light or low-temperature environments.

SMART DESIGN. EASY FIT.

Built for easy installation, this panel comes with 4 pre-drilled mounting holes and can also be secured using sealant or Velcro.

FLAME-PROOF MATERIAL

Added safety in case of overheating or electrical faults.

WEIGHS ONLY 2.30 KG

Exceptionally light, up to 70% lighter than traditional solar panels, making it easier to handle, move, or mount.

ANTI-CRACKENING FIBERS

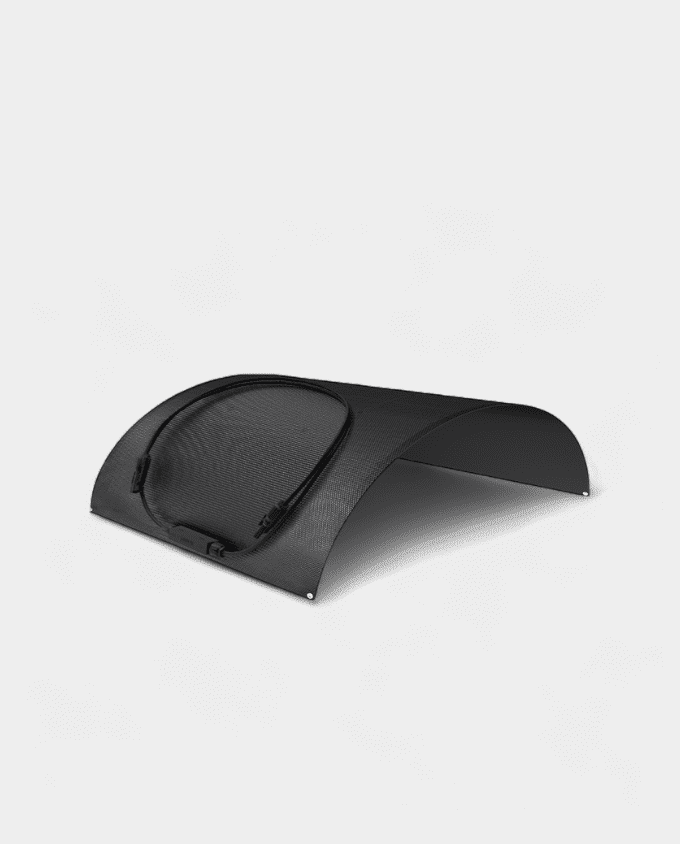

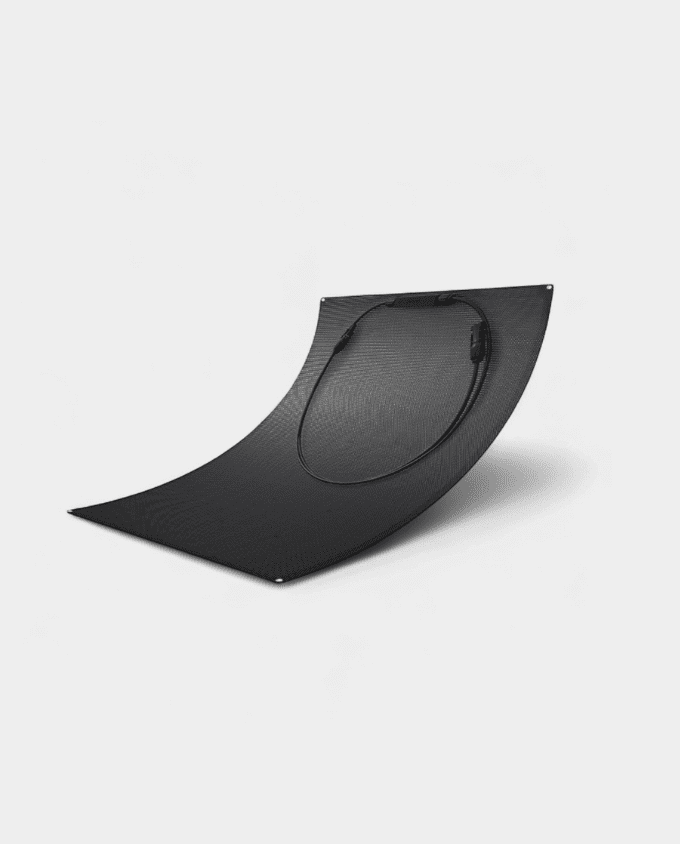

Built with reinforced layers and a durable ETFE surface, this panel easily flexes up to 258° without cracking or losing performance. It adapts perfectly to curved surfaces like those on caravans or vans, while maintaining strong and consistent solar input.

MORE WAYS TO INSTALL

Choose how to install your solar panel. Pre-cut eyelets allow for easy hanging with hooks, or you can mount it securely using adhesive on flat surfaces.

COMPATIBLE WITH ALL POWER STATIONS

Voltanic solar panel is plug-and-play with any power station. Most models come with the cable connector in the box, but if yours doesn’t, just get in touch and we’ll help you find exactly what you need.

FAQ

A 12V 100Ah LiFePO4 leisure battery gives you roughly 1200 usable watt-hours of energy (12V × 100Ah = 1200Wh). To figure out how long it will run for, simply add up the watts of all your devices and divide 1200 by that number.

General Guideline:

  • 100W usage (small TV, lights): ~12 hours
  • 200W usage (TV, laptop, lights): ~6 hours
  • 500W usage (small heater): ~2.4 hours
  • 1000W usage (microwave, kettle): ~1.2 hours

Remember: Actual runtime will vary based on temperature, battery age, and the type of devices being powered.

Using the Voltanic 200W Solar Panel as an example, the module itself generates around 10 amps per hour in peak sunlight. Since a 100Ah battery needs 100 amp-hours to charge fully, it would theoretically take 10 hours of perfect sunlight to charge it up. However, you typically only get 4-6 hours of good sun per day (in the spring & summer), so expect about 2 days for a full charge with a 200W panel.

General Guide:

  • Basic setup: 200W panel (2-3 days to charge)
  • Better setup: 300W panel (1-2 days to charge)
  • Optimal setup: 400W+ panel (1 day to charge)

Remember: Always use an MPPT solar charge controller between your panels and battery if you want to generate the most power.

A typical 12V camping fridge uses around 2-4 amps per hour (24-48 watts) when the compressor is running. However, fridges don’t run constantly – they typically cycle on and off to maintain temperature, running about 30% of the time in normal conditions. This means they average 0.6-1.2 amps per hour (7-14 watts).

Runtime Guideline:

  • Average conditions: 3-4 days runtime
  • Hot weather (more cycling): 2-3 days runtime
  • If running constantly: 20-30 hours

Remember: These are estimates – actual runtime depends on ambient temperature, how often you open the fridge, how full the fridge is etc.

The key factor to look at is your battery’s continuous discharge current rating. This is the amount of current (or amps) the battery can safely discharge continuously during day to day usage. A typical 12V 100Ah LiFePO4 battery has a continuous discharge rating of 100A or 1200 Watts (100A × 12V = 1200W)

Therefore, you should not use devices that continuously draw more than 1200 watts making the 1200W inverter perfect.

Note: You can technically use larger 1500-2000 watt inverters on a 12V 100Ah battery as running an inverter at 50-60% capacity (rather than at full load) can actually extend its lifespan. Just remember to never use devices that breach the continuous discharge current limit or you will reduce the lifespan of your battery & could damage it.

Remember: Always choose a pure sine wave inverter.

Yes, most standard 12V lead-acid chargers can safely charge LiFePO4 batteries since they charge at similar voltages (around 14.4V). However, there are a few things to consider:

Good to know:

  • Lead-acid chargers typically charge at lower currents, so charging will be slower
  • You may not achieve 100% charge
  • Avoid chargers with “desulfation” or “recovery” modes that use high voltage

For best results:

  • Use a proper LiFePO4 charger for faster charging and optimal battery life
  • If using a lead-acid charger, make sure it doesn’t exceed 14.6V
  • Check that your charger doesn’t have aggressive equalization modes



Remember: While lead-acid chargers will work, a dedicated LiFePO4 charger is a better long-term investment for optimal battery performance and lifespan.

LiFePO4 batteries require a specific charging profile to ensure safe, efficient charging and maximum battery life. You have several charging options:

  1. LiFePO4 Battery Charger (Wall Outlet)
  2. Solar Panels
  3. Use a DC-DC charger designed for LiFePO4

Remember: Always match charging voltage (14.4V-14.6V)

Technically yes, a split charge relay could work to charge a LiFePO4 battery since alternators typically output 14.4V, which is within LiFePO4’s charging voltage range. However, it’s not recommended because:

  • Alternator voltage can spike and fluctuate (especially in modern vehicles)
  • No protection against overcharging
  • No temperature monitoring
  • Could potentially void battery warranty
  • May cause premature battery wear

Better solution:

  • Use a DC-to-DC charger designed for LiFePO4
  • Provides proper voltage regulation
  • Includes safety features and proper charging profile

While a split charge relay might work in a pinch, investing in a proper DC-to-DC charger will protect your battery investment and ensure safe, efficient charging.

SPECS

Panel Specifications
Max Peak Power (Pmax): 160W
Maximum Power Point Voltage (Vmpp): 17.6V
Maximum Power Point Current (Impp): 9.10A
Open Circuit Voltage (Voc): 21.9V
Short Circuit Current (Isc): 9.56A
Max System Voltage: 600V
Size: 1035×765×2.5mm
Weight: 2.3kg
Color: Black
Connector: MC4 Connector
Cable: 0.9m, 4.0mm²
Surface: Salt Spray Resistant ETFE
Cells: 182mm × 30.625mm HPBC Cells
Cell Efficiency: 25.8%
