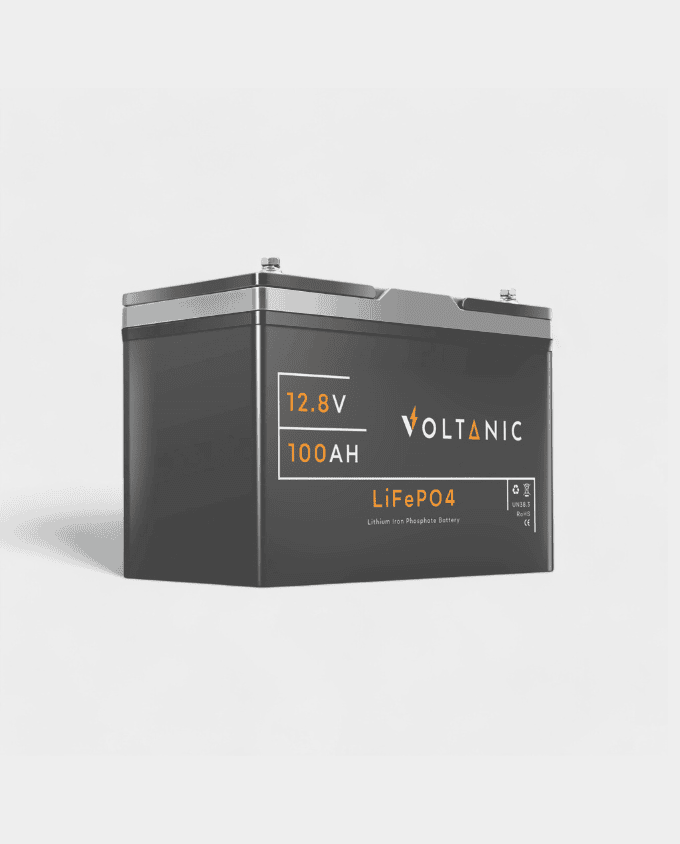

100AH 12V LifePO4 Lithium Leisure Battery
100AH 12V LifePO4 Lithium Leisure Battery - Image 2
100AH 12V LifePO4 Lithium Leisure Battery - Image 3
100AH 12V LifePO4 Lithium Leisure Battery - Image 4
100AH 12V LifePO4 Lithium Leisure Battery - Image 5
100AH 12V LifePO4 Lithium Leisure Battery - Image 6
100AH 12V LifePO4 Lithium Leisure Battery - Image 7

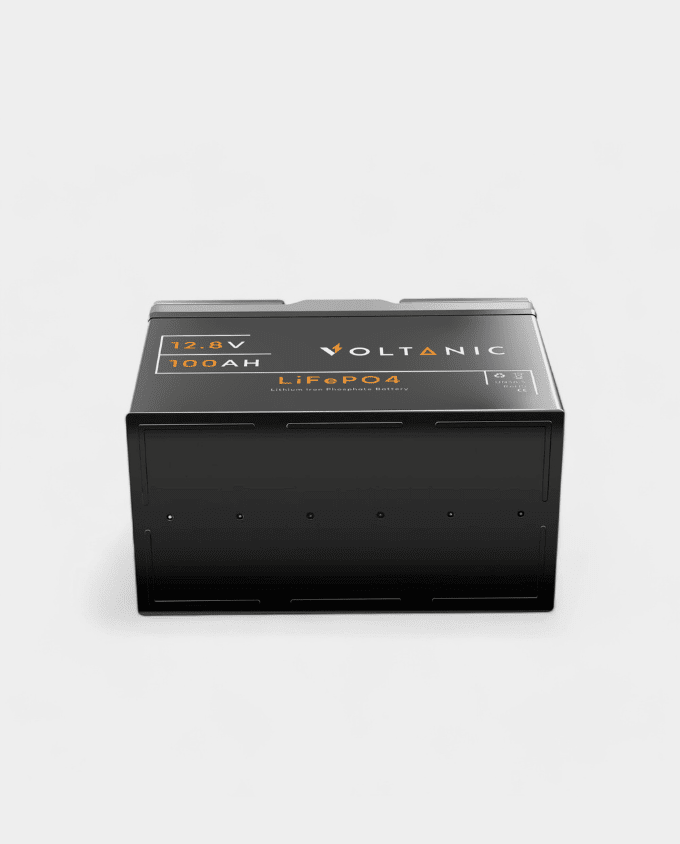

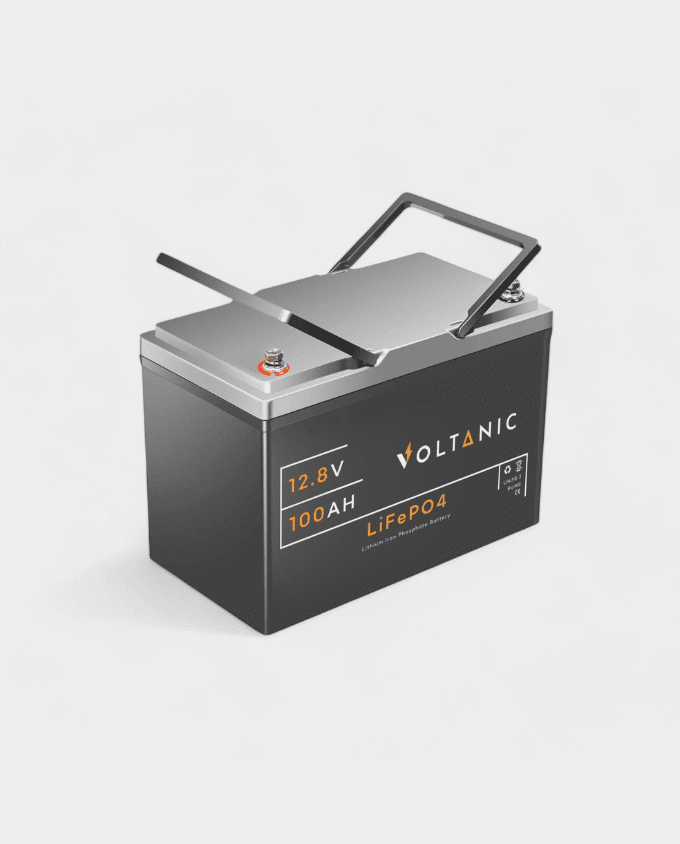

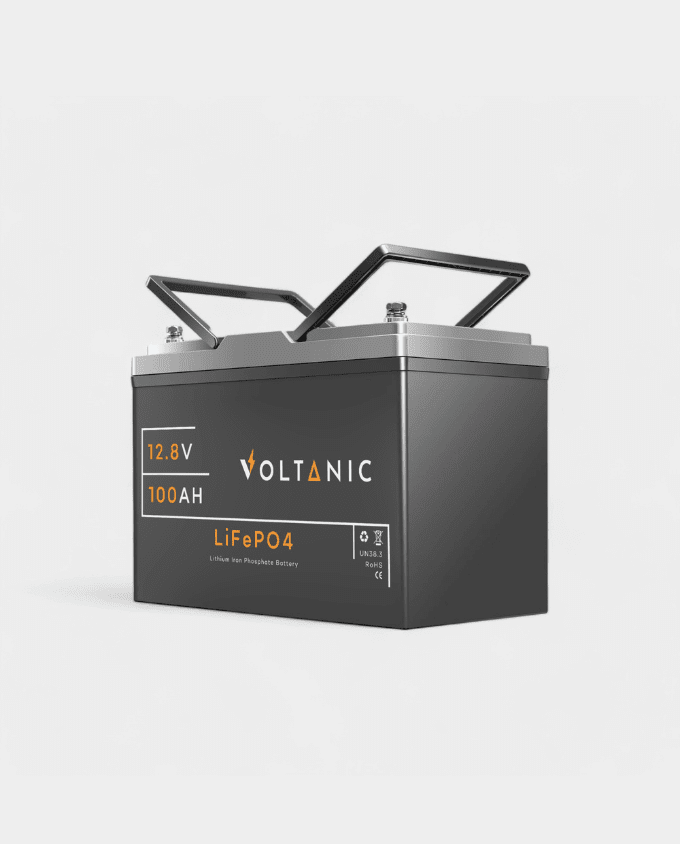

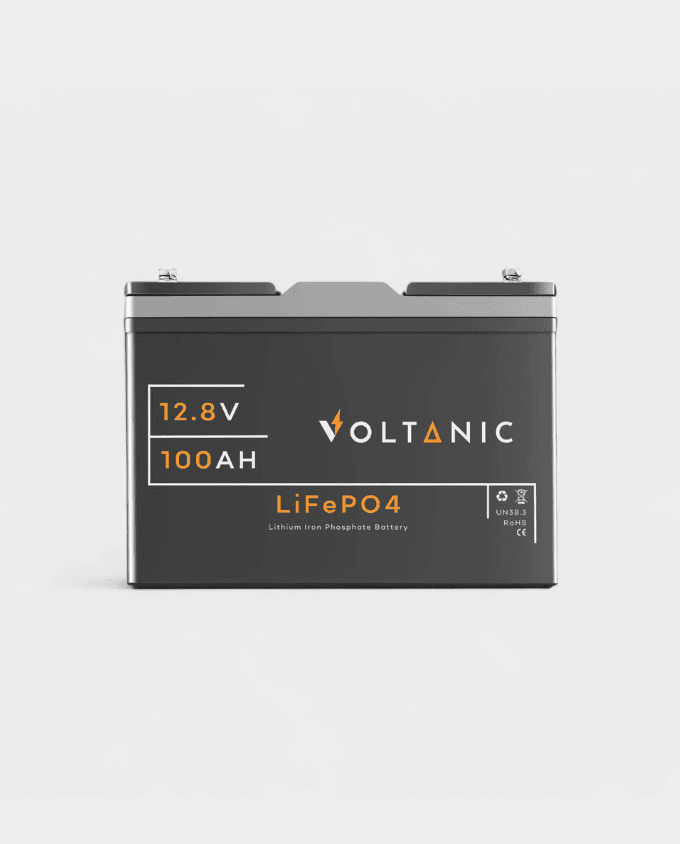

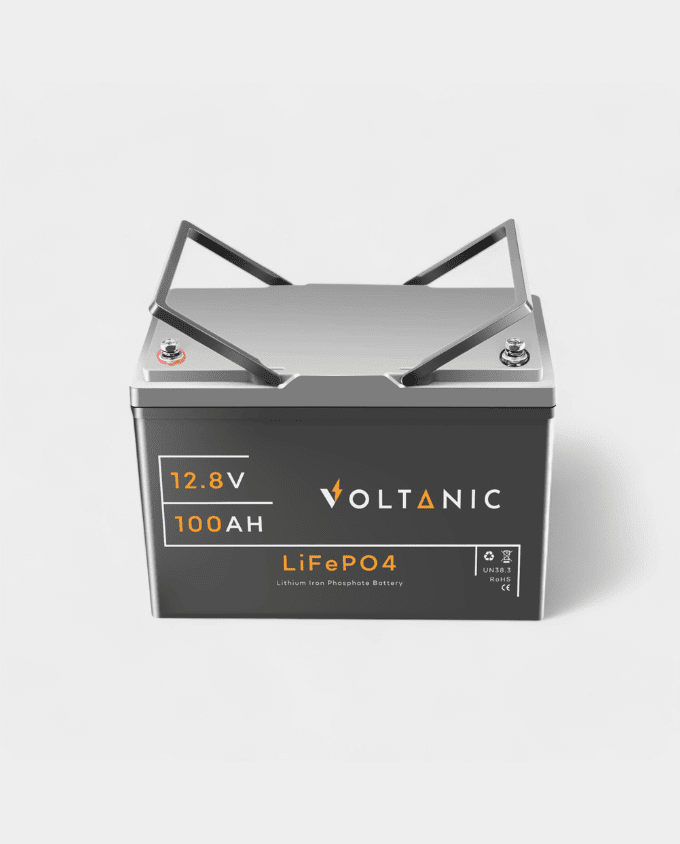

100AH 12V LifePO4 Lithium Leisure Battery

£245.00 Inc. VAT

This compact 100Ah 12V lithium leisure battery is the perfect mix of power and versatility.

Despite its small size, it packs an impressive 1280Wh of energy, making it a perfect fit for solar power storage on motorhomes and campers. It’s also an excellent choice for upgrading your old 100Ah lead-acid battery without sacrificing space.

Designed with an advanced BMS, it provides full protection and allows you to discharge 100Ah to power demanding appliances with an impressive peak discharge of 200A (10s).

Icon
Quick Specs
  • ▪️ Capacity: 100Ah
  • ▪️ Energy: 1280 kWh
  • ▪️ Voltage: 12.8V
  • ▪️ Cells: Prismatic “A” 3.2V100Ah 4S1P
  • ▪️ Charge Current: 100A
  • ▪️ Discharge Current: 100A
  • ▪️ Max Discharge: 200A (10s)
  • ▪️ Dimensions: 307L x 169W x 208H mm
  • ▪️ Weight: 10kg
Solar Icon
Voltanic Solar is highly rated by customers on Trustpilot for exceptional quality and support. Read more.

BUY WITH CONFIDENCE

Whatsapp Support

We take a unique approach to customer service—chat with us anytime!

Easy Returns

Enjoy stress-free returns with no questions asked.

5 Year Warranty

Rest easy with our outstanding and reliable warranty coverage.

STORE, USE AND SAVE

Our 100Ah model can store up to 1280Wh of energy, generated from solar panels, the mains, or your engine. Use this power to run all your devices day and night, or whenever you need to go completely off-grid.

This model is perfect for upgrading your old 100Ah lead-acid battery, offering a simple and straightforward replacement.

PROPER POWER. SUPERIOR SAFETY.

Our batteries come with an In-Built Battery Management System (BMS) which protects against overcharging, short-circuits, and temperature extremes, ensuring peace of mind and a long-lasting battery with excellent performance for over 10 years.

Not all lithium chemistry is created equal, and Voltanic uses the safest and most advanced of them all—Lithium Iron Phosphate (LiFePO4). With its unmatched chemical stability and exceptional energy density, LiFePO4 sets the standard for reliability and performance.

Crafted with the highest quality matched Grade A cells and assembled with metal brackets, Voltanic batteries are built to deliver consistent, high power.

SCALABLE POWER

Add extra batteries anytime

You can install up to 4 batteries in series or 16 in parallel, offering a wide range of voltage options and extra capacity.

COMPACT AND VERSATILE

Designed to Fit

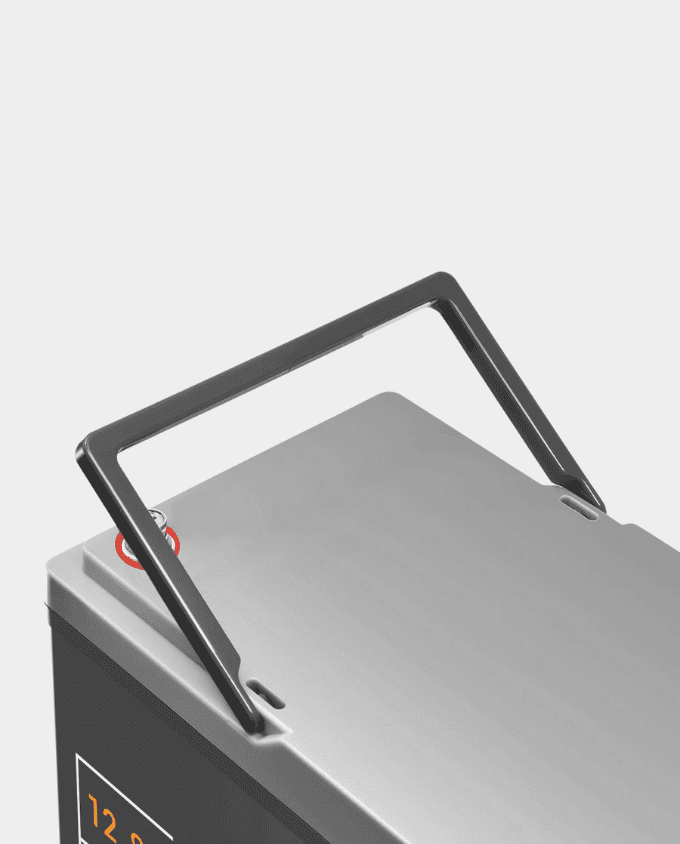

Fit your voltanic battery into any space, in any direction. Our user-friendly handle and IP65 waterproof rating provide extra comfort.

Fit your voltanic battery into any space, in any direction. Our user-friendly handle and IP65 waterproof rating provide extra comfort.

THE POWER OF 100AH

45
slices of toast
53
cups of tea
24
hours of laptop use
115
phone recharges
45
minutes of hair drying
3
days mini-fridge

WHY YOU MUST
UPGRADE TO LIFEPO4

Our LiFePO4 batteries are better than lead-acid and AGM in almost every way – they last 10x longer, charge twice as fast, weigh half as much, are safer. They come fully charged and ready to install, designed to withstand 3,000 charge cycles at 80% DoD, making them the highest performing and longest-lasting batteries for any off grid set-up.

Battery Comparison Chart
Feature LiFePO4 AGM Flooded
Cycle Life
(50% Discharge)		 ✅6,000 ❌500 ❌300
Weight ✅10kg ❌22kg ❌26kg
Charging Time ✅2–4h ❌6–8h ❌8+h
Discharge Depth ✅100% ⚠️80% ❌50%
Maintenance
Required		 ✅No ✅No ❌Yes
Orientation ✅Any ✅Any ⚠️Upright
Only
Vibration
Resistance		 ✅High ✅High ❌Low
Toxicity ✅None ⚠️Lead+Sulfur ⚠️Lead+Sulfur
Safety ✅BMS ⚠️None ⚠️None

SAFETY AT VOLTANIC​

Safety is our top priority. Starting with the selection of safe and tested Grade A cells from leading brands, we ensure secure handling and delivery by partnering with certified couriers experienced in transporting sensitive goods.

Our import processes adhere to strict safety standards, and every battery undergoes rigorous testing to identify and address any potential issues. Our products also meet essential certifications, including CE, UKCA, and RoHS, ensuring compliance and reliability.

FAQ

A 12V 100Ah LiFePO4 leisure battery gives you roughly 1200 usable watt-hours of energy (12V × 100Ah = 1200Wh). To figure out how long it will run for, simply add up the watts of all your devices and divide 1200 by that number.

General Guideline:

  • 100W usage (small TV, lights): ~12 hours
  • 200W usage (TV, laptop, lights): ~6 hours
  • 500W usage (small heater): ~2.4 hours
  • 1000W usage (microwave, kettle): ~1.2 hours

Remember: Actual runtime will vary based on temperature, battery age, and the type of devices being powered.

Using the Voltanic 200W Solar Panel as an example, the module itself generates around 10 amps per hour in peak sunlight. Since a 100Ah battery needs 100 amp-hours to charge fully, it would theoretically take 10 hours of perfect sunlight to charge it up. However, you typically only get 4-6 hours of good sun per day (in the spring & summer), so expect about 2 days for a full charge with a 200W panel.

General Guide:

  • Basic setup: 200W panel (2-3 days to charge)
  • Better setup: 300W panel (1-2 days to charge)
  • Optimal setup: 400W+ panel (1 day to charge)

Remember: Always use an MPPT solar charge controller between your panels and battery if you want to generate the most power.

A typical 12V camping fridge uses around 2-4 amps per hour (24-48 watts) when the compressor is running. However, fridges don’t run constantly – they typically cycle on and off to maintain temperature, running about 30% of the time in normal conditions. This means they average 0.6-1.2 amps per hour (7-14 watts).

Runtime Guideline:

  • Average conditions: 3-4 days runtime
  • Hot weather (more cycling): 2-3 days runtime
  • If running constantly: 20-30 hours

Remember: These are estimates – actual runtime depends on ambient temperature, how often you open the fridge, how full the fridge is etc.

The key factor to look at is your battery’s continuous discharge current rating. This is the amount of current (or amps) the battery can safely discharge continuously during day to day usage. A typical 12V 100Ah LiFePO4 battery has a continuous discharge rating of 100A or 1200 Watts (100A × 12V = 1200W)

Therefore, you should not use devices that continuously draw more than 1200 watts making the 1200W inverter perfect.

Note: You can technically use larger 1500-2000 watt inverters on a 12V 100Ah battery as running an inverter at 50-60% capacity (rather than at full load) can actually extend its lifespan. Just remember to never use devices that breach the continuous discharge current limit or you will reduce the lifespan of your battery & could damage it.

Remember: Always choose a pure sine wave inverter.

Yes, most standard 12V lead-acid chargers can safely charge LiFePO4 batteries since they charge at similar voltages (around 14.4V). However, there are a few things to consider:

Good to know:

  • Lead-acid chargers typically charge at lower currents, so charging will be slower
  • You may not achieve 100% charge
  • Avoid chargers with “desulfation” or “recovery” modes that use high voltage

For best results:

  • Use a proper LiFePO4 charger for faster charging and optimal battery life
  • If using a lead-acid charger, make sure it doesn’t exceed 14.6V
  • Check that your charger doesn’t have aggressive equalization modes



Remember: While lead-acid chargers will work, a dedicated LiFePO4 charger is a better long-term investment for optimal battery performance and lifespan.

LiFePO4 batteries require a specific charging profile to ensure safe, efficient charging and maximum battery life. You have several charging options:

  1. LiFePO4 Battery Charger (Wall Outlet)
  2. Solar Panels
  3. Use a DC-DC charger designed for LiFePO4

Remember: Always match charging voltage (14.4V-14.6V)

Technically yes, a split charge relay could work to charge a LiFePO4 battery since alternators typically output 14.4V, which is within LiFePO4’s charging voltage range. However, it’s not recommended because:

  • Alternator voltage can spike and fluctuate (especially in modern vehicles)
  • No protection against overcharging
  • No temperature monitoring
  • Could potentially void battery warranty
  • May cause premature battery wear

Better solution:

  • Use a DC-to-DC charger designed for LiFePO4
  • Provides proper voltage regulation
  • Includes safety features and proper charging profile

While a split charge relay might work in a pinch, investing in a proper DC-to-DC charger will protect your battery investment and ensure safe, efficient charging.
